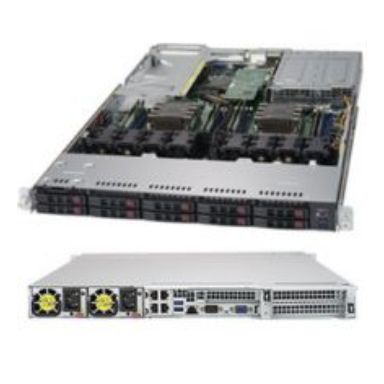

Supermicro SuperServer 1029UX-LL3-S16
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
Hot-swap HDD bays
Yes
Management features
PC health monitoring
CPU Fan Temperature
Processor
Built-in processor
No
System bus rate
10.4 GT/s
Processor socket
LGA 3647 (Socket P)
Number of processors supported
2
Motherboard chipset
Intel C621
Compatible processor series
Intel Xeon
Design
80 PLUS certification
80 PLUS Platinum
Reset button
Yes
On/off switch
Yes
Number of fans
8 fan(s)
LED indicators
Fan fail HDD LAN Power
Product colour
Black
Chassis type
Rack (1U)
Memory
Supported RDIMM clock speeds
213324002666 MHz
Supported memory types
DDR4-SDRAM
Number of DIMM slots
16
Maximum RDIMM memory
2000 GB
Maximum internal memory
2000 GB
ECC
Yes
Storage
Number of storage drives supported
10
Supported storage drive interfaces
Serial Attached SCSI (SAS)-3
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5"
Supported storage drive types
HDD & SSD
Performance
PC health monitoring
CPU Fan Temperature
Graphics
On-board graphics adapter model
Aspeed AST2500
Network
LAN controller
Intel I350-AM4
Ethernet LAN data rates
1000 Mbit/s
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
VGA (D-Sub) ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
4
COM ports quantity
1
Expansion slots
PCI Express x8 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
2
Features
PC health monitoring
CPU Fan Temperature
Technical details
PCI Express x8 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
2
Number of storage drives supported
10
Reset button
Yes
On/off switch
Yes
Number of fans
8 fan(s)
Chassis type
Rack (1U)
Sustainability certificates
RoHS
Colour
Product colour
Black
Indication
LED indicators
Fan fail HDD LAN Power
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC output current (+12 V)
62.5 A
Number of redundant power supplies installed
1
Redundant power supply (RPS) support
Yes
Power supply
750 W
80 PLUS certification
80 PLUS Platinum
Operational conditions
Storage temperature (T-T)
-40 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
17.2" (437 mm)
Weight
48.1 lbs (21.8 kg)
Height
1.69" (43 mm)
Depth
28.5" (724 mm)
Supermicro SuperServer 1029UX-LL3-S16
| Length | 72.40 cm |
| Width | 43.70 cm |
| Height | 4.30 cm |
| Weight | 21.820000 kgs |
