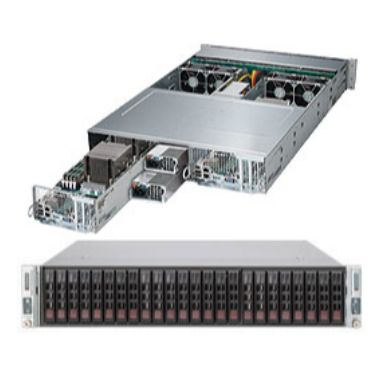

Supermicro SuperServer 2028TP-DECFR
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
Hot-swap HDD bays
Yes
Processor
Built-in processor
No
System bus type
QuickPath Interconnect (QPI)
Maximum cache
55 MB
System bus rate
9.6 GT/s
Processor socket
LGA 2011 (Socket R)
Number of processors supported
2
Motherboard chipset
Intel C612
Intel Xeon series
E5-2600
Compatible processor series
Intel Xeon
Design
80 PLUS certification
80 PLUS Platinum
On/off switch
Yes
Number of fans
4 fan(s)
Fan diameter
3.15" (8 cm)
LED indicators
HDD Network Power
Product colour
Black
Chassis type
Rack (2U)
Memory
Memory bus
72 bit
Supported RDIMM clock speeds
1600186621332400 MHz
Supported memory types
DDR4-SDRAM
Supported DIMM module capacities
4GB 8GB 16GB 32GB 64GB 128MB
Number of DIMM slots
16
Memory voltage
1.2 V
Memory form factor
288-pin DIMM
Maximum RDIMM memory
512 GB
Maximum internal memory
2000 GB
ECC
Yes
Storage
Number of storage drives supported
12
Supported storage drive interfaces
Serial Attached SCSI (SAS)-3
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5"
Supported storage drive types
HDD
Storage controller
LSI SAS3008
Performance
Integrated BMC with IPMI
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Network
LAN controller
Intel I350-AM2 Realtek RTL8201N
Ethernet LAN data rates
101001000 Mbit/s
Ethernet LAN
Yes
Copper ethernet cabling technology
10BASE-T100BASE-TX1000BASE-T
Ethernet interface type
Fast Ethernet Gigabit Ethernet
Ports & interfaces
VGA (D-Sub) ports quantity
1
Serial ports quantity
2
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
2
Number of SAS ports
12
Expansion slots
PCI Express x8 slots
1
PCI Express x16 slots
1
PCI Express slots version
3
Features
Integrated BMC with IPMI
Yes
Technical details
Number of storage drives supported
12
On/off switch
Yes
Number of fans
4 fan(s)
Fan diameter
3.15" (8 cm)
Integrated BMC with IPMI
Yes
Chassis type
Rack (2U)
Sustainability certificates
RoHS
Colour
Product colour
Black
Indication
LED indicators
HDD Network Power
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
6 - 12 A
DC output current (+5 V)
0.16666666666667
DC output current (+12 V)
106.7 A
Number of redundant power supplies installed
1
Redundant power supply (RPS) support
Yes
Power supply
1280 W
80 PLUS certification
80 PLUS Platinum
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
17.2" (438 mm)
Weight
65.9 lbs (29.9 kg)
Height
3.46" (88 mm)
Depth
28.7" (730 mm)
Package weight
85.1 lbs (38.6 kg)
Supermicro SuperServer 2028TP-DECFR
| Length | 73.00 cm |
| Width | 43.80 cm |
| Height | 8.80 cm |
| Weight | 29.890000 kgs |
