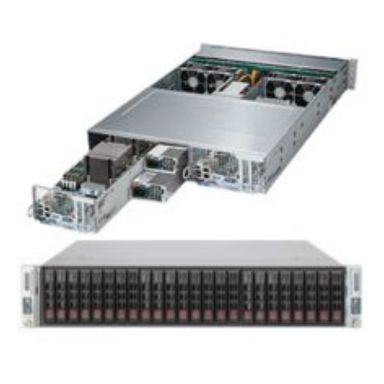

Supermicro SuperServer 2028TP-DNCTR
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
RAID levels
0110
Hot-swap HDD bays
Yes
Processor
Maximum cache
55 MB
System bus rate
9.6 GT/s
Processor socket
LGA 2011 (Socket R)
Processor family
Intel
Number of processors supported
2
Motherboard chipset
Intel C612
Intel Xeon series
E5-2600
Compatible processor series
Intel Xeon
Memory
Memory bus
72 bit
Supported memory types
DDR4-SDRAM
Number of DIMM slots
16
Memory voltage
1.2 V
Memory form factor
288-pin DIMM
Maximum internal memory
2048 GB
ECC
Yes
Storage
Number of storage drives supported
12
RAID levels
0110
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5"
Graphics
On-board graphics adapter model
Aspeed AST2400
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
2
Number of SAS ports
8
Expansion slots
PCI Express x8 slots
1
PCI Express x16 slots
1
Technical details
Number of storage drives supported
12
Number of fans
4 fan(s)
Fan diameter
3.15" (8 cm)
Chassis type
Rack (2U)
Sustainability certificates
RoHS
Colour
Product colour
Black Gray
Design
Number of fans
4 fan(s)
Fan diameter
3.15" (8 cm)
Product colour
Black Gray
Chassis type
Rack (2U)
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
7 - 11 A
DC output current (+5 V)
0.041666666666667
DC output current (+12 V)
133 A
Power supply
1600 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
17.2" (438 mm)
Weight
65.9 lbs (29.9 kg)
Height
3.46" (88 mm)
Depth
28.7" (730 mm)
Supermicro SuperServer 2028TP-DNCTR
| Length | 73.00 cm |
| Width | 43.80 cm |
| Height | 8.80 cm |
| Weight | 29.890000 kgs |
