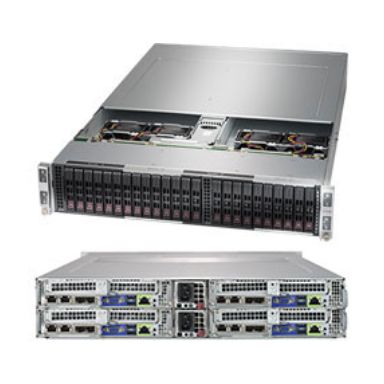

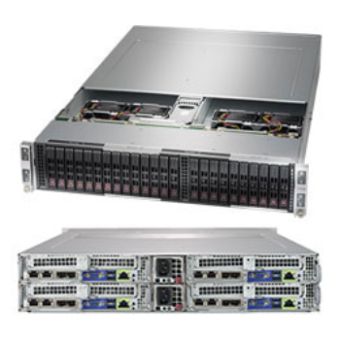

Supermicro SuperServer 2029BT-HTR

RAID levels

0-1-5-10

Hot-swap HDD bays

Yes

Built-in processor

No

System bus rate

10.4 GT/s

Processor socket

LGA 3647 (Socket P)

Processor family

Intel® Xeon®

Number of processors supported

2

Motherboard chipset

Intel® C621

Supported RDIMM clock speeds

2133-2400-2666 MHz

Supported memory types

DDR4-SDRAM

Number of DIMM slots

24

Maximum RDIMM memory

3072 GB

Maximum internal memory

3072 GB

ECC

Yes

Number of storage drives supported

6

Supported storage drive interfaces

Serial ATA III

RAID levels

0-1-5-10

Hot-swap HDD bays

Yes

Storage drive sizes supported

2.5"

On-board graphics adapter model

Aspeed AST2500

Ethernet LAN

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

VGA (D-Sub) ports quantity

1

IPMI LAN (RJ-45) port

Yes

PCI Express x16 slots

2

PCI Express slots version

3.0

Number of storage drives supported

6

Number of fans

4 fan(s)

Fan diameter

8 cm

Chassis type

Rack (2U)

Product colour

Black

BIOS type

AMI

BIOS memory size

32 Mbit

Number of fans

4 fan(s)

Fan diameter

8 cm

Product colour

Black

Chassis type

Rack (2U)

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Number of redundant power supplies installed

1

Power supply

2200 W

Storage temperature (T-T)

-40 - 60 °C

Storage relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

10 - 35 °C

Operating relative humidity (H-H)

8 - 90%

Width

438 mm

Weight

24.7 kg

Height

88 mm

Depth

724 mm

Package weight

38.6 kg

Package weight

38.6 kg
