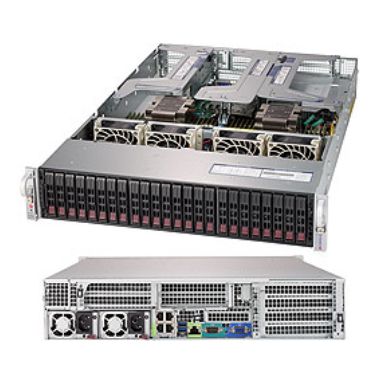

Supermicro SuperServer 2029U-TR4
0 Reviews
| Add your review
In Stock
|
£2553.25
£3063.90 (Inc. VAT)
| Hard drive | |
|---|---|
| RAID levels | 0-1-5-10 |
| Hot-swap HDD bays | Yes |
| Management features | |
| Intelligent Platform Management Interface (IPMI) support | Yes |
| Processor | |
| Built-in processor | No |
| System bus rate | 10.4 GT/s |
| Processor socket | LGA 3647 (Socket P) |
| Processor family | Intel® Xeon® |
| Number of processors supported | 2 |
| Motherboard chipset | Intel® C621 |
| Compatible processor series | Intel® Xeon® |
| Design | |
| 80 PLUS certification | 80 PLUS Titanium |
| On/off switch | Yes |
| Number of fans | 4 fan(s) |
| LED indicators | Yes |
| Product colour | Black |
| Chassis type | Rack (2U) |
| Memory | |
| Supported RDIMM clock speeds | 2133-2400-2666 MHz |
| Supported memory types | DDR4-SDRAM |
| Number of DIMM slots | 24 |
| Memory voltage | 1.2 V |
| Maximum RDIMM memory | 3072 GB |
| Maximum internal memory | 3072 GB |
| ECC | Yes |
| Storage | |
| Number of storage drives supported | 24 |
| Number of 2.5" bays | 24 |
| Supported storage drive interfaces | Serial ATA III |
| RAID levels | 0-1-5-10 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5" |
| Performance | |
| Intelligent Platform Management Interface (IPMI) support | Yes |
| Graphics | |
| On-board graphics card model | Aspeed AST2500 |
| Network | |
| LAN controller | Intel® I350 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Number of SATA III connectors | 14 |
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| IPMI LAN (RJ-45) port | Yes |
| Ethernet LAN (RJ-45) ports | 5 |
| Expansion slots | |
| PCI Express x8 (Gen 3.x) slots | 7 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Technical details | |
| PCI Express x8 (Gen 3.x) slots | 7 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of storage drives supported | 24 |
| Number of 2.5" bays | 24 |
| On/off switch | Yes |
| Number of fans | 4 fan(s) |
| Chassis type | Rack (2U) |
| Sustainability certificates | RoHS |
| Colour | |
| Product colour | Black |
| Indication | |
| LED indicators | Yes |
| Processor special features | |
| Intelligent Platform Management Interface (IPMI) support | Yes |
| BIOS | |
| BIOS type | AMI |
| BIOS memory size | 32 Mbit |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC output current (+12 V) | 83 A |
| Number of redundant power supplies installed | 2 |
| Number of redundant power supplies supported | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1000 W |
| 80 PLUS certification | 80 PLUS Titanium |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Weight & dimensions | |
| Width | 437 mm |
| Weight | 16.4 kg |
| Height | 89 mm |
| Depth | 705.3 mm |
| Package weight | 32.7 kg |
