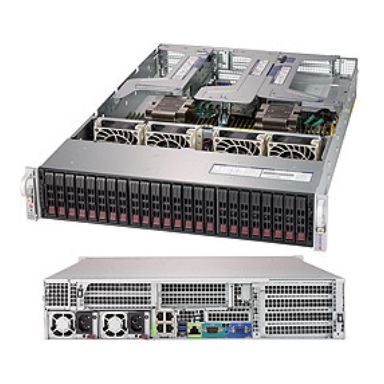

Supermicro SuperServer 2029U-TR4T

Supermicro SuperServer 2029U-TR4T

Designed for enterprise data centers and demanding workloads, Supermicro SuperServer 2029U-TR4T UK is a high-performing server optimized for virtualization, hyperconverged storage, and cloud computing.

Key 2029U-TR4T Supermicro Specifications UK:

• Dual socket P (LGA 3647) supports Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s

• Up to 3TB ECC 3DS LRDIMM or RDIMM, up to DDR4-2666MHz; 24 DIMM slots

• 2 PCI-E 3.0 x16 slots (FH, 10.5" L), 4 PCI-E 3.0 x8 slots (FH, 10.5" L), 1 PCI-E 3.0 x8 slot (LP)

• 4x 10GBase-T LAN ports via Intel X540

• 24 Hot-swap 2.5" drive bays; 14 SATA3 (optional 20 SAS3 + 4 NVMe/SAS3), Optional 2 hot-swap 2.5" rear drive bays for SSDs; Optional M.2 NVMe and SATA3 ports

• 4 Heavy-duty 8cm PWM fans

• 1000W Redundant Power Supplies Titanium Level (96%)

Here is an in-depth breakdown of Supermicro SYS-2029U-TR4T UK.

Powerful Dual-Socket Intel® Xeon® Processing:

Supermicro Xeon Scalable server UK is provided with a Dual Socket P (LGA 3647) CPU that supports 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s, and a CPU TDP of 70-205W. It also supports up to 28 Cores, delivering exceptional multi-core performance and advanced features for compute-intensive workloads.

High-Capacity Memory Support:

This hyperconverged storage server UK comes with 24 DIMM slots that can support up to 6TB 3DS ECC DDR4-2933MHz. It also supports 2933, 2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM 2666 ECC DDR4 NVDIMM memory type. The ECC ensures data integrity, making it suitable for virtual machines, in-memory databases, and enterprise applications.

Flexible Storage Space:

This high-end enterprise server UK is provided with 24 Hot-swap 2.5" drive bays and 14 SATA3 (optional 20 SAS3 + 4 NVMe/SAS3, enabling users to add SSD/HDD storage in line with their growing business needs.

Advanced Networking Options:

Supermicro X11DPU motherboard server is equipped with 4x 10GBase-T ports via AOC-2UR66-i4XTF (Intel® XL710-BM1 + X557-AT4), allowing network administrators fast and reliable data transfer, making it suitable for data-intensive applications and network-heavy workloads in modern data centers.
