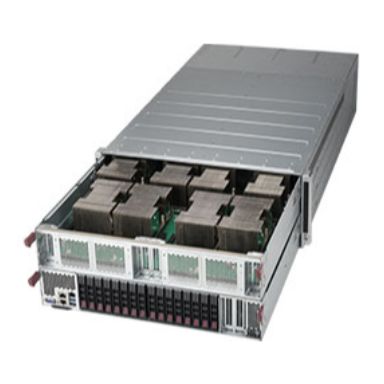

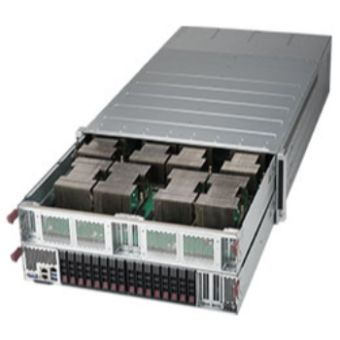

Supermicro Superserver 4028GR-TXR (Complete System Only)
In Stock
|
£9061.34
£10873.61 (Inc. VAT)
get it next day (UK Mainland Orders)
Supermicro Superserver 4028GR-TXR (Complete System Only)
Write Your Own Review
Hard drive
RAID levels
0-1-5-10
Hot-swap HDD bays
Yes
Management features
PC health monitoring
CPU- Fan- Temperature
Processor
Built-in processor
No
Maximum cache
55 MB
System bus rate
9.6 GT/s
Processor socket
LGA 2011 (Socket R)
Number of processors supported
2
Motherboard chipset
Intel® C612
Intel Xeon series
E5-2600
Compatible processor series
Intel® Xeon®
Memory
Supported RDIMM clock speeds
1600-1866-2133-2400 MHz
Supported memory types
DDR4-SDRAM
Number of DIMM slots
24
Memory voltage
1.2 V
Memory form factor
288-pin DIMM
Maximum RDIMM memory
2000 GB
Maximum internal memory
3000 GB
ECC
Yes
Storage
Number of storage drives supported
16
Supported storage drive interfaces
Serial ATA III
RAID levels
0-1-5-10
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5"
Performance
PC health monitoring
CPU- Fan- Temperature
Graphics
On-board graphics adapter model
Aspeed AST2400
Network
LAN controller
Intel® I350
Ethernet LAN data rates
10-100-1000 Mbit/s
Ethernet LAN
Yes
Copper ethernet cabling technology
10BASE-T-100BASE-TX-1000BASE-T
Ethernet interface type
Fast Ethernet- Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Number of SATA III connectors
10
VGA (D-Sub) ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express x8 slots
2
PCI Express x16 slots
4
PCI Express slots version
3.0
Features
PC health monitoring
CPU- Fan- Temperature
Technical details
Number of storage drives supported
16
Number of fans
8 fan(s)
Fan diameter
9.2 cm
Chassis type
Rack (4U)
Sustainability certificates
RoHS
Colour
Product colour
Black
BIOS
BIOS features
PCI 2.3-SMBIOS 2.7.1-UEFI
BIOS type
EEPROM
BIOS memory size
128 Mbit
Design
Number of fans
8 fan(s)
Fan diameter
9.2 cm
Product colour
Black
Chassis type
Rack (4U)
Power
Number of redundant power supplies installed
4
Redundant power supply (RPS) support
Yes
Power supply
2200 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
447 mm
Weight
36.2 kg
Height
178 mm
Depth
805 mm
Package weight
61.2 kg
Packaging data
Package weight
61.2 kg
| Length | 80.50 cm |
| Width | 44.70 cm |
| Height | 17.80 cm |
| Weight | 61.20 kgs |
