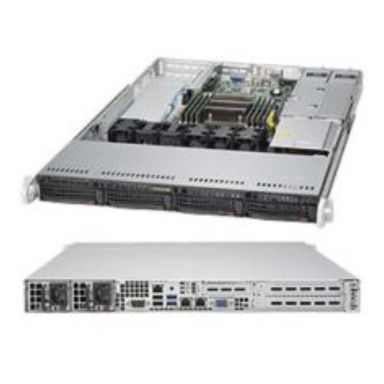

Supermicro SuperServer 5018R-WR
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
RAID levels
01510
Hot-swap HDD bays
Yes
Management features
PC health monitoring
FANLEDTemperatureVoltage
Processor
Processor socket
LGA 2011 (Socket R)
Processor family
Intel
Number of processors supported
1
Motherboard chipset
Intel C612
Intel Xeon series
E5-1600E5-2600
Compatible processor series
Intel Xeon
Memory
Supported memory types
DDR4-SDRAM
Number of DIMM slots
8
Memory voltage
1.2 V
Maximum internal memory
512 GB
ECC
Yes
Storage
Number of storage drives supported
4
RAID levels
01510
Hot-swap HDD bays
Yes
Storage drive sizes supported
3.5"
Graphics
On-board graphics adapter model
Aspeed AST2400
Network
LAN controller
Intel I350-AM2
Ethernet LAN data rates
101001000 Mbit/s
Ethernet LAN
Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Number of SATA III connectors
4
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
2
Serial ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express x8 slots
1
PCI Express x16 slots
2
Technical details
Number of storage drives supported
4
On/off switch
Yes
Processor cores
18
Chassis type
Rack (1U)
Colour
Product colour
Black
Indication
LED indicators
Yes
Design
On/off switch
Yes
LED indicators
Yes
Product colour
Black
Chassis type
Rack (1U)
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power supply
500 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
17.2" (437 mm)
Weight
35.9 lbs (16.3 kg)
Height
1.93" (49 mm)
Depth
25.6" (650 mm)
Supermicro SuperServer 5018R-WR
| Length | 65.00 cm |
| Width | 43.70 cm |
| Height | 4.90 cm |
| Weight | 16.280000 kgs |
