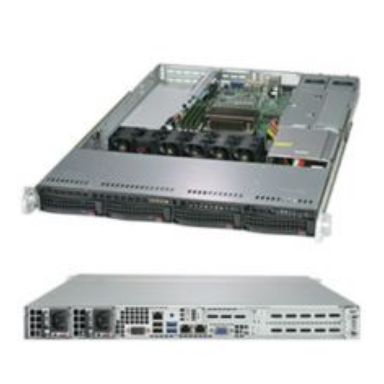

Supermicro SuperServer 5019C-WR
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
RAID levels
01510
Hot-swap HDD bays
Yes
Management features
PC health monitoring
CPU Fan Temperature
Processor
Built-in processor
No
Processor socket
LGA 1151 (Socket H4)
Number of processors supported
1
Motherboard chipset
Intel C246
Design
80 PLUS certification
80 PLUS Platinum
Reset button
Yes
On/off switch
Yes
Number of fans
5 fan(s)
Fan diameter
1.57" (4 cm)
LED indicators
HDD Network Power System
Product colour
Black
Chassis type
Rack (1U)
Memory
Supported RDIMM clock speeds
213324002666 MHz
Supported memory types
DDR4-SDRAM
Supported DIMM module capacities
4GB 8GB 16GB 32GB
Number of DIMM slots
4
Maximum internal memory
128 GB
ECC
Yes
Storage
Number of storage drives supported
4
Number of 3.5" bays
4
RAID levels
01510
Hot-swap HDD bays
Yes
Storage drive sizes supported
3.5"
Performance
PC health monitoring
CPU Fan Temperature
Graphics
On-board graphics adapter model
Aspeed AST2500
Network
LAN controller
Intel I210-AT
Ethernet LAN data rates
101001000 Mbit/s
Ethernet LAN
Yes
Ports & interfaces
Number of SATA III connectors
6
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
2
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
2
COM ports quantity
1
Expansion slots
PCI Express x4 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
Number of M.2 (M) slots
1
Features
PC health monitoring
CPU Fan Temperature
Technical details
PCI Express x4 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
Number of storage drives supported
4
Number of 3.5" bays
4
Reset button
Yes
On/off switch
Yes
Number of fans
5 fan(s)
Fan diameter
1.57" (4 cm)
Chassis type
Rack (1U)
Sustainability certificates
RoHS
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
6.1 - 2.6 A
DC output current (+12 V)
42 A
Number of redundant power supplies installed
2
Redundant power supply (RPS) support
Yes
Power supply
500 W
80 PLUS certification
80 PLUS Platinum
Colour
Product colour
Black
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
17.2" (437 mm)
Weight
24.9 lbs (11.3 kg)
Height
1.69" (43 mm)
Depth
25.6" (650 mm)
Supermicro SuperServer 5019C-WR
| Length | 65.00 cm |
| Width | 43.70 cm |
| Height | 4.30 cm |
| Weight | 11.290000 kgs |
