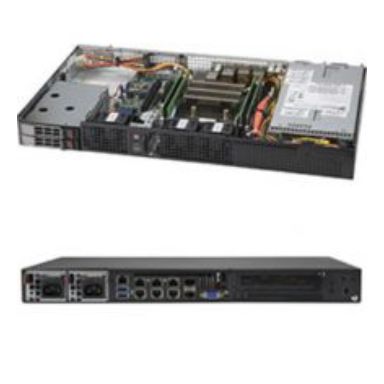

Supermicro SuperServer 5019D-RN8TP
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
Hot-swap HDD bays
Yes
Processor
Built-in processor
Yes
Processor model
D-2146NT
Processor family
Intel Xeon
Number of processors supported
1
Processor manufacturer
Intel
Design
80 PLUS certification
80 PLUS Gold
Reset button
Yes
On/off switch
Yes
LED indicators
Yes
Product colour
Black
Chassis type
Rack (1U)
Memory
Supported RDIMM clock speeds
213324002666 MHz
Supported memory types
DDR4-SDRAM
Supported DIMM module capacities
16GB 32GB 64GB 128GB
Number of DIMM slots
4
Memory voltage
1.2 V
Maximum RDIMM memory
256 GB
ECC
Yes
Storage
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5M.2
Performance
Trusted Platform Module (TPM) version
2
Trusted Platform Module (TPM)
Yes
Graphics
On-board graphics adapter model
Aspeed AST2500
Network
Ethernet LAN data rates
100010000 Mbit/s
Ethernet LAN
Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
9
Number of SAS-3 ports
4
Expansion slots
PCI Express slots version
3
Features
Trusted Platform Module (TPM) version
2
Trusted Platform Module (TPM)
Yes
Embedded options available
Yes
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Reset button
Yes
On/off switch
Yes
Trusted Platform Module (TPM) version
2
Trusted Platform Module (TPM)
Yes
CPU configuration (max)
1
Chassis type
Rack (1U)
Colour
Product colour
Black
Indication
LED indicators
Yes
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
BIOS
BIOS type
AMI
BIOS memory size
128 Mbit
ACPI version
5
UEFI version
2.4
System Management BIOS (SMBIOS) version
2.8
Power
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Number of redundant power supplies installed
1
Redundant power supply (RPS) support
Yes
Power supply
300 W
80 PLUS certification
80 PLUS Gold
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
17.2" (437 mm)
Weight
8 lbs (3.63 kg)
Height
1.69" (43 mm)
Depth
9.8" (249 mm)
Supermicro SuperServer 5019D-RN8TP
| Length | 24.90 cm |
| Width | 43.70 cm |
| Height | 4.30 cm |
| Weight | 3.630000 kgs |
