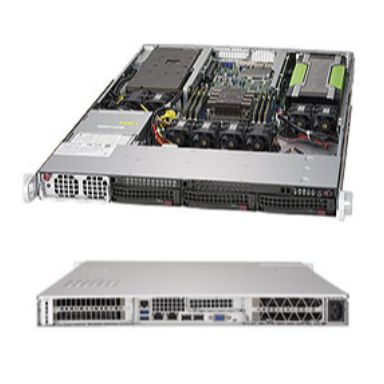

Supermicro SuperServer 5019GP-TT
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
RAID levels
0-1-5-10
Hot-swap HDD bays
Yes
Processor
Built-in processor
No
Processor socket
LGA 3647 (Socket P)
Processor family
Intel® Xeon®
Motherboard chipset
Intel® C621
Memory
Supported RDIMM clock speeds
2133-2400-2666 MHz
Supported memory types
DDR4-SDRAM
Number of DIMM slots
6
Maximum RDIMM memory
192 GB
Maximum internal memory
768 GB
ECC
Yes
Storage
Number of storage drives supported
3
RAID levels
0-1-5-10
Hot-swap HDD bays
Yes
Storage drive sizes supported
3.5"
Network
LAN controller
Intel® X550
Ethernet LAN
Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
Serial ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express x16 slots
3
PCI Express slots version
3
Technical details
Number of storage drives supported
3
Number of fans
8 fan(s)
Fan diameter
4 cm
BIOS
BIOS type
AMI
BIOS memory size
32 Mbit
Design
Number of fans
8 fan(s)
Fan diameter
4 cm
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC output current (+5 V)
0.25
DC output current (+12 V)
117 A
Number of redundant power supplies installed
1
Redundant power supply (RPS) support
Yes
Power supply
1400 W
Operational conditions
Storage temperature (T-T)
-40 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
437 mm
Weight
12.7 kg
Height
43 mm
Depth
716 mm
Package weight
16.3 kg
Supermicro SuperServer 5019GP-TT
| Length | 71.60 cm |
| Width | 43.70 cm |
| Height | 4.30 cm |
| Weight | 12.700000 kgs |
