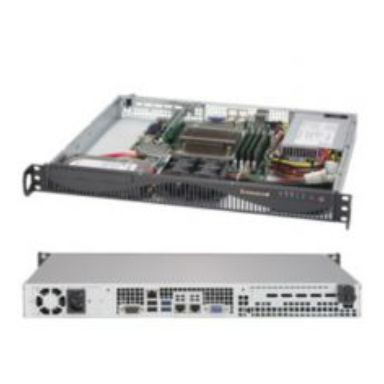

Supermicro SuperServer 5019S-ML
In Stock
|
Call For Price
(0808 189 1246)
Management features
PC health monitoring
CPU Fan LED Temperature Voltage
Processor
Processor socket
LGA 1151 (Socket H4)
Processor family
Intel
Number of processors supported
1
Motherboard chipset
Intel C236
Intel Xeon series
E3-1200
Compatible processor series
Intel Core⢠i3
Memory
Memory bus
72 bit
Supported UDIMM clock speeds
160018662133 MHz
Supported memory types
DDR4-SDRAM
Supported DIMM module capacities
4GB 8GB 16GB
Number of DIMM slots
4
Non-ECC
No
Memory voltage
1.2 V
Memory form factor
288-pin DIMM
Maximum UDIMM memory
64 GB
Maximum internal memory
64 GB
ECC
Yes
Storage
Number of storage drives supported
2
Supported storage drive interfaces
Serial ATA III
RAID levels
01510
Hot-swap HDD bays
Yes
Storage drive sizes supported
3.5"
Performance
Backplanes support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2400
Network
LAN controller
Intel I210-AT
Ethernet LAN data rates
101001000 Mbit/s
Ethernet LAN
Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Number of SATA III connectors
2
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
2
PS/2 ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express x8 slots
1
PCI Express slots version
3
Features
Backplanes support
Yes
Technical details
Number of storage drives supported
2
On/off switch
Yes
Number of fans
2 fan(s)
Fan diameter
1.57" (4 cm)
Certification
80 PLUS Platinum
Rack-Friendly board
Yes
Chassis type
Rack (1U)
Backplanes support
Yes
Sustainability certificates
RoHS
Colour
Product colour
Black
BIOS
BIOS features
PCI 2.2SMBIOS 2.3
BIOS type
AMI
BIOS memory size
64 Mbit
ACPI version
2
Design
On/off switch
Yes
Number of fans
2 fan(s)
Fan diameter
1.57" (4 cm)
Certification
80 PLUS Platinum
Rack-Friendly board
Yes
Product colour
Black
Chassis type
Rack (1U)
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
1.8 - 4.2 A
DC output current (+5 V)
15 A
DC output current (+12 V)
29 A
Power supply
350 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
17.2" (437 mm)
Weight
8.44 lbs (3.83 kg)
Height
1.69" (43 mm)
Depth
14.4" (366 mm)
Supermicro SuperServer 5019S-ML
| Length | 36.60 cm |
| Width | 43.70 cm |
| Height | 4.30 cm |
| Weight | 3.830000 kgs |
