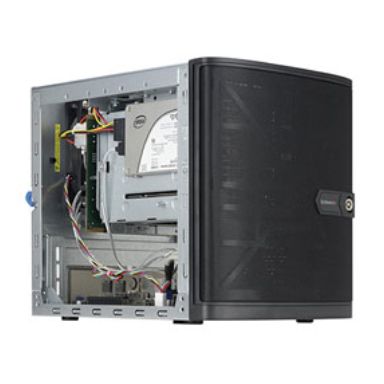

Supermicro SuperServer 5029AP-TN2
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
Hot-swap HDD bays
Yes
Software
Bundled software
SuperDoctor® 5 Watch Dog
Processor
Processor socket
BGA 1296
Processor family
Intel
Number of processors supported
1
Motherboard chipset
Intel SoC
Compatible processor series
Intel Atom®
Memory
Supported UDIMM clock speeds
1333-1600-1866 MHz
Supported memory types
DDR3-SDRAM
Supported DIMM module capacities
2GB- 4GB- 8GB
Number of DIMM slots
1
Non-ECC
Yes
Memory form factor
204-pin SO-DIMM
Maximum UDIMM memory
8 GB
Maximum internal memory
8 GB
Storage
Number of storage drives supported
6
Hot-swap HDD bays
Yes
Storage drive sizes supported
2.5-3.5"
Graphics
On-board graphics adapter model
Intel® HD Graphics
Network
LAN controller
Intel® I210-AT
Ethernet LAN data rates
10-100-1000 Mbit/s
Ethernet LAN
Yes
Copper ethernet cabling technology
10BASE-T-100BASE-TX-1000BASE-T
Ethernet interface type
Fast Ethernet- Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Number of SATA III connectors
6
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
5
Serial ports quantity
2
Ethernet LAN (RJ-45) ports
2
Expansion slots
Micro low profile PCI Express slots
1
PCI Express x4 slots
1
PCI Express slots version
2
Technical details
Number of storage drives supported
6
Chassis type
Mini Tower
Sustainability certificates
RoHS
Colour
Product colour
Black
BIOS
BIOS features
Plug & Play-SMBIOS 2.7.1-UEFI
BIOS type
EEPROM
BIOS memory size
64 Mbit
ACPI version
5
Design
Product colour
Black
Chassis type
Mini Tower
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC output current (+5 V)
14 A
DC output current (+12 V)
18 A
Power supply
250 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
210 mm
Weight
6.8 kg
Height
240 mm
Depth
279 mm
Supermicro SuperServer 5029AP-TN2
| Length | 27.90 cm |
| Width | 21.00 cm |
| Height | 24.00 cm |
| Weight | 6.800000 kgs |
