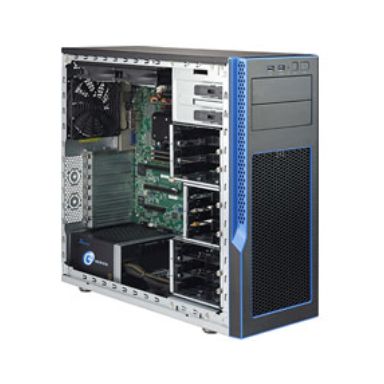

Supermicro SuperServer 5038K-I-NF1
In Stock
|
Call For Price
(0808 189 1246)
Processor
Thermal Monitoring Technologies
Yes
Thermal Design Power (TDP)
215 W
Supported instruction sets
AVX-512
Stepping
B0
Processor threads
64
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Knights landing
Processor code
SR2ME
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2133 MHz
Memory channels supported by processor
Hexa
Memory bandwidth supported by processor (max)
102 GB/s
Maximum number of PCI Express lanes
36
Maximum internal memory supported by processor
384 GB
Idle States
Yes
Execute Disable Bit
Yes
Embedded options available
No
ECC supported by processor
Yes
Processor cache type
L2
Processor cache
32 MB
Conflict-Free processor
Yes
VID Voltage Range
0.55 - 1.125 V
Processor frequency
1.3 GHz
Processor boost frequency
1.5 GHz
Number of processors installed
1
Processor model
7210
Processor socket
LGA 3647 (Socket P)
Processor cores
64
Processor manufacturer
Intel
Intelligent Platform Management Interface (IPMI) support
Yes
Processor family
Intel® Xeon Phi
Memory
Memory slots
6x DIMM
Maximum internal memory
192 GB
Internal memory type
DDR4-SDRAM
ECC
Yes
Storage
RAID support
Yes
RAID levels
0, 1, 5, 10
Optical drive type
No
HDD size
2.5/3.5/5.25"
HDD interface
Serial ATA III
Network
LAN controller
Intel® I350
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
Total number of SATA connectors
10
VGA (D-Sub) ports quantity
1
Serial ports quantity
1
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express x4 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
2
PCI Express slots version
3.0
Optical drive
Optical drive type
No
Design
Optical drive type
No
Chassis type
Midi Tower
Product colour
Black
Performance
Operating system installed
No
Integrated BMC with IPMI
Yes
BIOS type
AMI
Intelligent Platform Management Interface (IPMI) support
Yes
Software
Operating system installed
No
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)
No
Intel VT-x with Extended Page Tables (EPT)
No
Intel® Turbo Boost Technology
2.0
Intel Trusted Execution Technology
No
Intel Software Guard Extensions (Intel SGX)
No
Intel Enhanced Halt State
Yes
Intel® Anti-Theft Technology (Intel® AT)
No
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel 64
Yes
Intel Virtualization Technology (VT-x)
No
Intel Secure Key Technology version
0.00
Processor ARK ID
94033
Intelligent Platform Management Interface (IPMI) support
Yes
Power
Power supply input frequency
50 - 60 Hz
Power supply
750 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
8 - 90%
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Certificates
Certification
RoHS
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)
No
Intelligent Platform Management Interface (IPMI) support
Yes
Integrated BMC with IPMI
Yes
Ethernet interface type
Gigabit Ethernet
BIOS type
AMI
Chassis type
Midi Tower
Weight & dimensions
Package weight
15.9 kg
Width
201 mm
Weight
12.7 kg
Height
460 mm
Depth
493 mm
Packaging data
Package weight
15.9 kg
Other features
Integrated BMC with IPMI
Yes
