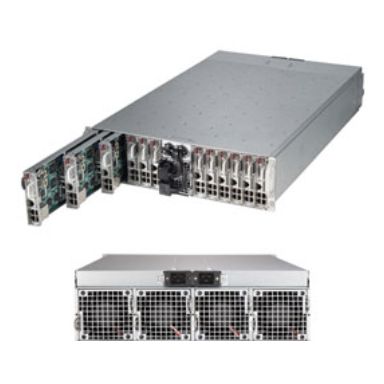

Supermicro SuperServer 5038MD-H24TRF
In Stock
|
Call For Price
(0808 189 1246)
Processor
Thermal Monitoring Technologies
Yes
Thermal Design Power (TDP)
45 W
Supported instruction sets
AVX 2.0
Stepping
V2
Scalability
1S
Processor threads
12
Processor package size
37.5 x 37.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Broadwell
Processor code
SR2DG
PCI Express configurations
1x16, 1x4, 1x8
Memory voltage supported by processor
1.2 V
Memory types supported by processor
DDR3-SDRAM, DDR4-SDRAM
Memory channels supported by processor
Dual
Maximum number of PCI Express lanes
32
Maximum internal memory supported by processor
128 GB
Idle States
Yes
Execute Disable Bit
Yes
Embedded options available
No
ECC supported by processor
Yes
Processor cache type
L3
Processor cache
9 MB
Conflict-Free processor
Yes
Processor series
Intel Xeon D-1500
Processor frequency
2.2 GHz
Processor boost frequency
2.7 GHz
Number of processors installed
1
Processor model
D-1531
Processor socket
BGA 1667
Processor cores
6
Processor manufacturer
Intel
Processor family
Intel® Xeon® D
Memory
Memory slots
4
Maximum internal memory
128 GB
Internal memory type
DDR4-SDRAM
ECC
Yes
Storage
Supported storage drive interfaces
Serial ATA III
Supported HDD sizes
2.5"
Optical drive type
No
Graphics
On-board graphics card model
Aspeed AST2400
On-board graphics card
Yes
Network
LAN controller
Intel® I350
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Cabling technology
10/100/1000Base-T(X)
Ports & interfaces
Total number of SATA connectors
6
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
2
Ethernet LAN (RJ-45) ports
4
Expansion slots
PCI Express slots version
2.0, 3.0
Optical drive
Optical drive type
No
Design
Optical drive type
No
Chassis type
Rack (3U)
Performance
BIOS type
EEPROM
Processor special features
Enhanced Intel SpeedStep Technology
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel® OS Guard
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Turbo Boost Technology
2.0
Intel TSX-NI
Yes
Intel Trusted Execution Technology
Yes
Intel® Secure Key
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel Enhanced Halt State
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel 64
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel TSX-NI version
1.00
Intel Secure Key Technology version
1.00
UART
Yes
Processor ARK ID
91203
CPU configuration (max)
1
Power
Number of redundant power supplies installed
1
Redundant power supply (RPS) support
Yes
Power supply input frequency
50 - 60 Hz
Power supply
1620 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
8 - 90%
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Certificates
Certification
RoHS
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Supported HDD sizes
2.5"
Ethernet interface type
Gigabit Ethernet
CPU configuration (max)
1
BIOS type
EEPROM
Chassis type
Rack (3U)
Number of 2.5" bays
2
Weight & dimensions
Package width
1075 mm
Package depth
720 mm
Package height
408 mm
Package weight
54.4 kg
Width
438 mm
Weight
40.8 kg
Height
132 mm
Depth
749 mm
Packaging data
Package width
1075 mm
Package depth
720 mm
Package height
408 mm
Package weight
54.4 kg
Other features
CPU configuration (max)
1
Supermicro SuperServer 5038MD-H24TRF
