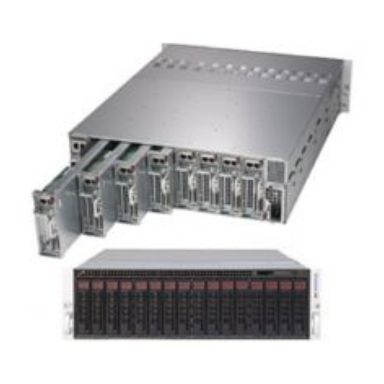

Supermicro SuperServer 5039MC-H8TRF

Supermicro SuperServer 5039MC-H8TRF

Designed for organizations seeking a robust and reliable server solution, Supermicro SuperServer 5039MC-H8TRF UK is a high-density, multi-node 3U rack server platform featuring a compelling blend of performance and dependability, thanks to built-in support for Intel® Xeon® processor family, 4 GB of DDR4-SDRAM, and a memory clock speed of 2666 MHz, three Ethernet LAN (RJ-45) ports for seamless network integration, and more.

Key Features of SYS-5039MC-H8TRF server UK:

• Single socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100/E-2200, 8th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®

• Intel® C246 chipset

• Up to 128GB unbuffered ECC, up to DDR4-2666MHz; 4 DIMM slots

• 1 PCI-E 3.0 x8 LP slot, 1 Micro-LP slot (MicroLP upgradable)

• 2x 3.5" SATA3 drives or 2x 2.5" SATA3 w/ optional kits

• M.2 Interface: 2 PCI-E 3.0 x4, M.2 Form Factor: 2280, 22110, M.2 Key: M-Key

• 2 GbE LAN ports via Intel i350

• Aspeed AST2500 graphics

• 4x 8cm Heavy-duty fans with optimal cooling zone

• 2000W Redundant power supplies, Titanium Level Certified (per system)

The detailed description of the 5039MC-H8TRF specifications is given below.

Supermicro MicroCloud 8-Node in UK:

This Supermicro rack server comes with support for 8 independent server nodes in a single enclosure and a 3U rackmount chassis. Each node is provided with its own CPU, memory, storage, and network interfaces, making this rack server suitable for scale-out deployments, multi-tenant environments, and virtual machine clusters for demanding applications, including Cloud Computing Infrastructure, Virtualization, High-Density Compute Environments, Distributed Applications, Edge Computing, Content Delivery Networks (CDN), Web Hosting, and Software-Defined Storage.

Processor Support:

SYS-5039MC-H8TRF server UK is provided with Single Socket H4 (LGA 1151), supporting range of 8th-generation Intel processors including Intel® Xeon® E-2100 and E-2200 series, Intel® Core™ i3 (8th gen), and Intel® Pentium® and Intel® Celeron®.

Each node can also support up to 8 cores, delivering balanced performance for general-purpose compute tasks.

Memory and Storage Configuration:

MicroCloud server for web hosting UK comes with 4 DIMM slots, supporting up to 128GB Unbuffered ECC and up to DDR4-2666MHz memory. DIMM Sizes range from 32GB, 16GB, 8GB, and 4GB, and memory types include 2666/2400/2133MHz ECC DDR4 SDRAM.

Storage support is also exceptional. The per-node drive bays are as follows:

• 2x 3.5" SATA3 drives or

• 2x 2.5" SATA3 w/ optional kits

As a result, users can perform a wide range of workloads from basic file servers to high-performance VMs and cache-accelerated applications.

Remote Management & Connectivity:

Supermicro X11SCD-F MicroCloud is provided with an impressive set of connectivity options, featuring three Ethernet LAN (RJ-45) ports for seamless network integration and robust RAID support with levels 0, 1, 5, and 10, allowing network admins to meet their varying needs of protection.

In addition, it comes with a dedicated IPMI LAN port for out-of-band remote management and monitoring.

Optimum Airflow for Optimum Performance:

The Supermicro server for cloud computing in the UK is equipped with 4x 8cm heavy-duty fans, providing an optimal cooling zone to ensure optimum airflow. Additionally, it is equipped with 2000W Titanium Redundant Power Supplies featuring PMBus and Reverse Airflow, ensuring optimal cooling and reliable power availability.
