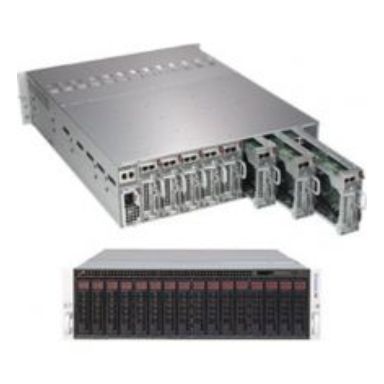

Supermicro SuperServer 5039MD8-H8TNR
In Stock
|
Call For Price
(0808 189 1246)
SPECIFICATIONS
Product Description
Supermicro SuperServer 5039MD8-H8TNR - rack-mountable
Type
Cluster (8 nodes) - rack-mountable
Height (Rack Units)
3U
Processor
1 x Intel Xeon D-2141I (8-core)
Storage Controller
SATA (SATA 6Gb/s)
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
ASPEED AST2500
Networking
GigE
Cluster Configuration
8 - computing node
OS Provided
No operating system
Color
Black
Dimensions (WxDxH)
15.2 in x 23 in x 5.2 in
Weight
62.19 lbs
General
Type
Cluster (8 nodes)
Product Form Factor
Rack-mountable - 3U
Cluster Configuration
8 - computing node
Color
Black
Processor / Chipset
CPU
Intel Xeon D-2141I
Number of Cores
8-core
CPU Qty
1
Max CPU Qty
1
RAM
Installed Size
0 GB / 512 GB (max)
Technology
DDR4 SDRAM - ECC
Form Factor
DIMM 288-pin
Slots
4 (total) / 4 (empty)
Hard Drive
Type
No HDD
Storage Controller
Type
1 x SATA
Controller Interface Type
SATA 6Gb/s
Channel Qty
2
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
ASPEED AST2500
Networking
Ethernet Ports
2 x Gigabit Ethernet
Ethernet Controller
Intel I350
Remote Management Protocol
DMI 2.3 IPMI 2.0
Remote Management Controller
Aspeed AST2500
Features
KVM over IP support
Cluster
Shared Storage Power Supply
2 redundant power supplies
Power Supply Capacity
2x1600 Watt
Expansion / Connectivity
Bays
2 (total) / 2 (free) x internal 3.5"
Miscellaneous
Included Accessories
8 x riser cards 16 x air shrouds
Cables Included
Network cable (2 pcs.) ¦ SGPIO cable
Compliant Standards
RoHS
Power
80 PLUS Certification
80 PLUS Titanium
Operating System / Software
OS Provided
No operating system
Dimensions & Weight
Width
15.2 in
Depth
23 in
Height
5.2 in
Weight
62.19 lbs
Supermicro SuperServer 5039MD8-H8TNR
| Length | 23 cm |
| Width | 15.2 cm |
| Height | 5.2 cm |
| Weight | 1.000000 kgs |
