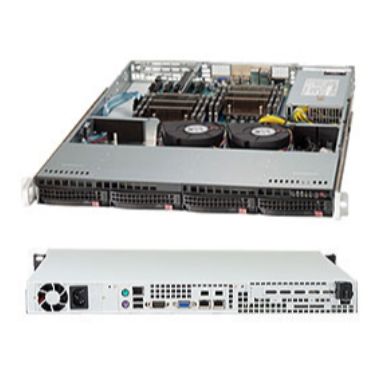

Supermicro SuperServer 6017R-TDF
In Stock
|
$1193.86
$1432.63 (Inc. VAT)
Hard drive
RAID levels
0-1-5-10
Hot-swap HDD bays
Yes
Management features
Processor
System bus rate
8 GT/s
Processor socket
LGA 2011 (Socket R)
Processor family
Intel
Number of processors supported
2
Motherboard chipset
Intel® C602
Intel Xeon series
E5-2600
Compatible processor series
Intel® Xeon®
Memory
Supported memory types
DDR3-SDRAM
Number of DIMM slots
8
Memory voltage
1.35-1.5 V
Memory form factor
240-pin DIMM
Maximum internal memory
256 GB
ECC
Yes
Storage
Number of storage drives supported
4
RAID levels
0-1-5-10
Hot-swap HDD bays
Yes
Storage drive sizes supported
3.5"
Performance
Network
Ethernet LAN data rates
10-100-1000 Mbit/s
Ports & interfaces
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
4
Serial ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
3
Expansion slots
PCI Express x16 slots
1
PCI Express slots version
3
Technical details
Number of storage drives supported
4
Chassis type
Rack (1U)
Colour
Product colour
Black
Indication
LED indicators
HDD- LAN- Power
Processor special features
BIOS
BIOS type
AMI
BIOS memory size
128 Mbit
ACPI version
2
Design
LED indicators
HDD- LAN- Power
Product colour
Black
Chassis type
Rack (1U)
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power supply
440 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
437 mm
Weight
16.4 kg
Height
43 mm
Depth
650 mm
Supermicro SuperServer 6017R-TDF
| Length | 65.00 cm |
| Width | 43.70 cm |
| Height | 4.30 cm |
| Weight | 16.400000 kgs |
