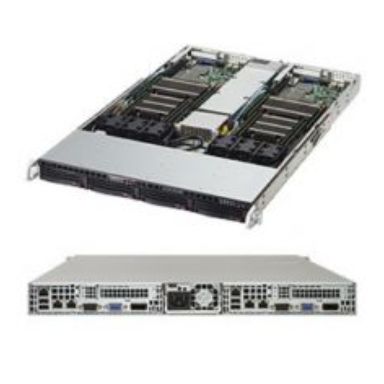

Supermicro SuperServer 6018TR-TF
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
RAID levels
01510
Hot-swap HDD bays
Yes
Processor
Maximum cache
55 MB
System bus rate
9.6 GT/s
Processor socket
LGA 2011 (Socket R)
Processor family
Intel
Number of processors supported
2
Motherboard chipset
Intel C612
Intel Xeon series
E5-2600
Compatible processor series
Intel Xeon
Memory
Memory bus
72 bit
Supported memory types
DDR4-SDRAM
Number of DIMM slots
8
Memory voltage
1.2 V
Memory form factor
288-pin DIMM
Maximum RDIMM memory
256 GB
Maximum internal memory
1000 GB
ECC
Yes
Storage
Number of storage drives supported
2
Supported storage drive interfaces
Serial ATA III
RAID levels
01510
Hot-swap HDD bays
Yes
Storage drive sizes supported
3.5"
Graphics
On-board graphics adapter model
Aspeed AST2400
Network
LAN controller
Intel I350
Ethernet LAN
Yes
Ports & interfaces
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
2
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express x16 slots
1
Technical details
Number of storage drives supported
2
On/off switch
Yes
Number of fans
3 fan(s)
Fan diameter
1.57" (4 cm)
Chassis type
Rack (1U)
Sustainability certificates
RoHS
Colour
Product colour
Black Gray
Indication
LED indicators
Yes
Design
On/off switch
Yes
Number of fans
3 fan(s)
Fan diameter
1.57" (4 cm)
LED indicators
Yes
Product colour
Black Gray
Chassis type
Rack (1U)
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
11 - 4.5 A
DC output current (+5 V)
0.16666666666667
DC output current (+12 V)
75 A
Power supply
1000 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
17.2" (437 mm)
Weight
43 lbs (19.5 kg)
Height
1.75" (44.5 mm)
Depth
27.8" (705 mm)
Supermicro SuperServer 6018TR-TF
| Length | 70.50 cm |
| Width | 43.70 cm |
| Height | 4.45 cm |
| Weight | 19.500000 kgs |
