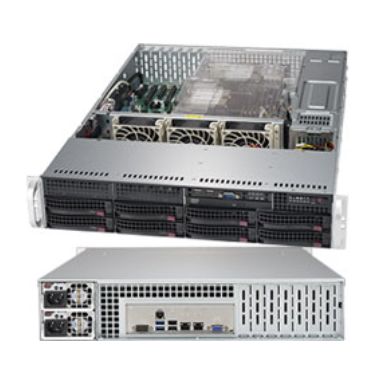

Supermicro SuperServer 6029P-TR
In Stock
|
Call For Price
(0808 189 1246)
Hard drive
RAID levels
0-1-5-10
Hot-swap HDD bays
Yes
Management features
Intelligent Platform Management Interface (IPMI) support
Yes
Processor
Built-in processor
No
System bus rate
10.4 GT/s
Processor socket
LGA 3647 (Socket P)
Processor family
Intel
Number of processors supported
2
Motherboard chipset
Intel® C621
Compatible processor series
Intel® Xeon®
Memory
Supported RDIMM clock speeds
2133-2400-2666 MHz
Supported memory types
DDR4-SDRAM
Number of DIMM slots
16
Maximum UDIMM memory
2048 GB
Maximum RDIMM memory
512 GB
Maximum internal memory
2048 GB
ECC
Yes
Storage
Number of storage drives supported
8
Supported storage drive interfaces
Serial ATA III
RAID levels
0-1-5-10
Hot-swap HDD bays
Yes
Storage drive sizes supported
3.5"
Performance
Intelligent Platform Management Interface (IPMI) support
Yes
Graphics
On-board graphics adapter model
Aspeed AST2500
Network
LAN controller
Intel® X722
Ethernet LAN data rates
10-100-1000 Mbit/s
Ethernet LAN
Yes
Ethernet interface type
Fast Ethernet- Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Number of SATA III connectors
8
VGA (D-Sub) ports quantity
1
USB 2.0 ports quantity
4
Serial ports quantity
2
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
2
Expansion slots
PCI Express x8 slots
2
PCI Express x16 slots
4
PCI Express slots version
3
Technical details
Number of storage drives supported
8
Number of fans
3 fan(s)
Fan diameter
8 cm
Certification
UL/cUL/CB/BSMI/CE/CCC
Chassis type
Rack (2U)
Sustainability certificates
RoHS
Colour
Product colour
Black
Indication
LED indicators
HDD- LAN- Power
Processor special features
Intelligent Platform Management Interface (IPMI) support
Yes
BIOS
BIOS type
UEFI AMI
Design
Number of fans
3 fan(s)
Fan diameter
8 cm
Certification
UL/cUL/CB/BSMI/CE/CCC
LED indicators
HDD- LAN- Power
Product colour
Black
Chassis type
Rack (2U)
Power
Number of redundant power supplies installed
1
Redundant power supply (RPS) support
Yes
Power supply
1000 W
Operational conditions
Storage temperature (T-T)
-40 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
437 mm
Weight
16.1 kg
Height
89 mm
Depth
647 mm

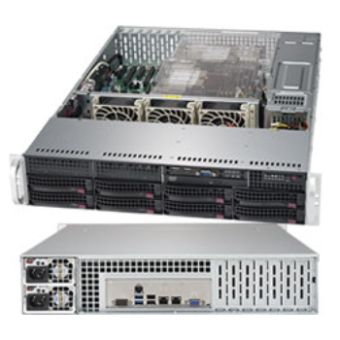

Supermicro SuperServer 6029P-TR
| Length | 64.70 cm |
| Width | 43.70 cm |
| Height | 8.90 cm |
| Weight | 16.100000 kgs |
