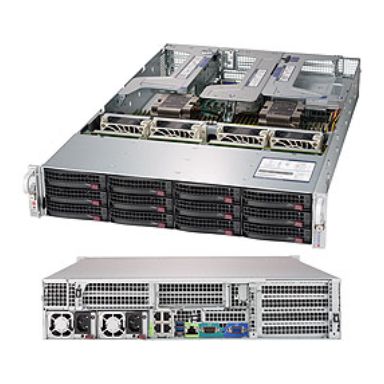

Supermicro SuperServer 6029U-E1CR4T
In Stock
|
$3533.20
$4239.84 (Inc. VAT)
Hard drive
RAID levels
0-1-5-10
Hot-swap HDD bays
Yes
Management features
Intelligent Platform Management Interface (IPMI) support
Yes
Processor
Built-in processor
No
System bus rate
10.4 GT/s
Processor socket
LGA 3647 (Socket P)
Processor family
Intel® Xeon®
Number of processors supported
2
Motherboard chipset
Intel® C621
Compatible processor series
Intel® Xeon®
Design
80 PLUS certification
80 PLUS Titanium
On/off switch
Yes
Number of fans
4 fan(s)
LED indicators
Yes
Product colour
Black
Chassis type
Rack (2U)
Memory
Supported memory types
DDR4-SDRAM
Number of DIMM slots
24
Memory voltage
1.2 V
Maximum RDIMM memory
3072 GB
Maximum internal memory
3072 GB
ECC
Yes
Storage
Number of storage drives supported
12
Number of 3.5" bays
12
RAID levels
0-1-5-10
Hot-swap HDD bays
Yes
Storage drive sizes supported
3.5"
Performance
Intelligent Platform Management Interface (IPMI) support
Yes
Graphics
On-board graphics card model
Aspeed AST2500
Network
Ethernet LAN data rates
10000 Mbit/s
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
VGA (D-Sub) ports quantity
2
Serial ports quantity
1
IPMI LAN (RJ-45) port
Yes
Ethernet LAN (RJ-45) ports
5
Number of SAS ports
12
Expansion slots
PCI Express x8 (Gen 3.x) slots
6
PCI Express x16 (Gen 3.x) slots
2
Technical details
PCI Express x8 (Gen 3.x) slots
6
PCI Express x16 (Gen 3.x) slots
2
Number of storage drives supported
12
Number of 3.5" bays
12
On/off switch
Yes
Number of fans
4 fan(s)
Chassis type
Rack (2U)
Colour
Product colour
Black
Indication
LED indicators
Yes
Processor special features
Intelligent Platform Management Interface (IPMI) support
Yes
BIOS
BIOS type
AMI
BIOS memory size
32 Mbit
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
DC output current (+12 V)
83 A
Number of redundant power supplies installed
2
Number of redundant power supplies supported
2
Redundant power supply (RPS) support
Yes
Power supply
1000 W
80 PLUS certification
80 PLUS Titanium
Operational conditions
Storage temperature (T-T)
-40 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
10 - 35 °C
Operating relative humidity (H-H)
8 - 90%
Weight & dimensions
Width
437 mm
Weight
16.4 kg
Height
89 mm
Depth
723 mm
Package weight
32.7 kg
Supermicro SuperServer 6029U-E1CR4T
