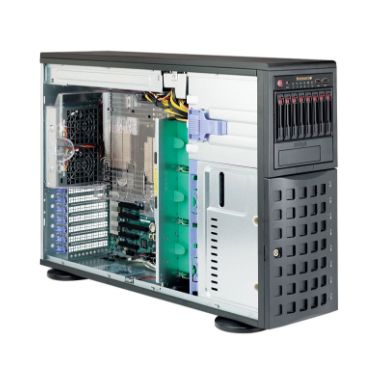

Supermicro SuperServer 7048R-C1R
In Stock
|
Call For Price
(0808 189 1246)
SPECIFICATIONS
Product Description
Supermicro SuperServer 7048R-C1R - tower
Type
Server - tower - chassis intrusion detection
Height (Rack Units)
4U
Server Scalability
2-way
Processor
No CPU
Processor Socket
LGA2011-v3 Socket
Server Storage Bays
Hot-swap 2.5" 3.5"
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
ASPEED AST2400
Networking
GigE
Power
AC 120/230 V (50/60 Hz)
Power Redundancy
Yes
Color
Black
Dimensions (WxDxH)
7 in x 25.5 in x 17.2 in
Weight
57.1 lbs
General
Type
Server
Product Form Factor
Tower - 4U
Server Scalability
2-way
Front Accessible Bays Qty
1
Hot-Swap Bays Qty
16
Color
Black
Processor / Chipset
CPU
No CPU
Max CPU Qty
2
CPU Upgradability
Upgradable
CPU Socket
LGA2011-v3 Socket
Chipset Type
Intel C612
RAM
Installed Size
0 GB / 1 TB (max)
Technology
DDR4 SDRAM - ECC
Form Factor
DIMM 288-pin
Slots
16 (total) / 16 (empty)
Hard Drive
Type
No HDD
Storage Controller
Type
1 x RAID - integrated
Controller Interface Type
SAS 12Gb/s
Storage Controller Name
LSISAS3108
Channel Qty
8
Storage Controller (2nd)
Type
1 x SATA - integrated
Controller Interface Type
SATA 6Gb/s
Channel Qty
10
RAID Level
RAID 0 RAID 1 RAID 5 RAID 10
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Type
Integrated
Graphics Processor
ASPEED AST2400
Video Interfaces
VGA
Networking
Type
Integrated
Ethernet Ports
2 x Gigabit Ethernet
Ethernet Controller
Intel I350
Remote Management Protocol
DMI 2.2 IPMI 2.0
Features
KVM over IP support
Miscellaneous
Included Accessories
2 x CPU Heatsink
Compliant Standards
Plug and Play ACPI 2.0 APM 1.2 RoHS
Power
Device Type
Power supply
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Installed Qty
2
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
920 Watt
80 PLUS Certification
80 PLUS Platinum
Dimensions & Weight
Width
7 in
Depth
25.5 in
Height
17.2 in
Weight
57.1 lbs
Supermicro SuperServer 7048R-C1R
| Length | 31.05 cm |
| Width | 24.12 cm |
| Height | 14 cm |
| Weight | 1.000000 kgs |
