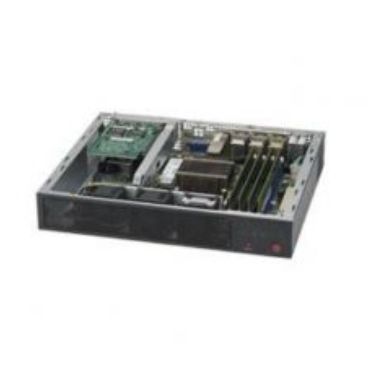

Supermicro SuperServer E300-8D
In Stock
|
Call For Price
(0808 189 1246)
Processor
Thermal Monitoring Technologies
Yes
Thermal Design Power (TDP)
35 W
Supported instruction sets
AVX 2.0
Stepping
V2
Scalability
1S
Processor threads
8
Processor package size
37.5 x 37.5 mm
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Broadwell
Processor code
SR2DN
PCI Express configurations
1x161x41x8
Memory voltage supported by processor
1.2 V
Memory channels supported by processor
Dual
Maximum number of PCI Express lanes
32
Maximum internal memory supported by processor
128 GB
Idle States
Yes
Execute Disable Bit
Yes
Embedded options available
Yes
ECC supported by processor
Yes
Processor cache type
L3
Processor cache
6 MB
Conflict-Free processor
Yes
Processor series
Intel Xeon D-1500
Processor frequency
2.2 GHz
Number of processors installed
1
Processor model
D-1518
Processor boost frequency
2.2 GHz
Processor socket
BGA 1667
Processor cores
4
Processor manufacturer
Intel
Intelligent Platform Management Interface (IPMI) support
Yes
Processor family
Intel Xeon D
Memory
Flash memory
128 MB
Memory slots
4
Maximum internal memory
128 GB
Internal memory type
DDR4-SDRAM
ECC
Yes
Storage
Supported storage drive interfaces
M.2 Serial ATA III
Supported HDD sizes
2.5"
RAID support
Yes
RAID levels
01510
Optical drive type
No
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Total number of SATA connectors
6
VGA (D-Sub) ports quantity
1
Number of SATA III connectors
4
Ethernet LAN (RJ-45) ports
6
Expansion slots
PCI Express slots version
2.03.0
PCI Express x8 (Gen 3.x) slots
1
Optical drive
Optical drive type
No
Design
Optical drive type
No
Chassis type
Mini (1U)
Graphics
Graphics adapter
AST2400
Performance
Trusted Platform Module (TPM) version
2
Trusted Platform Module (TPM)
Yes
BIOS type
AMI
Intelligent Platform Management Interface (IPMI) support
Yes
Power
Power management
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
8 - 90%
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 40 °C
Certificates
Certification
RoHS
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Trusted Platform Module (TPM) version
2
Trusted Platform Module (TPM)
Yes
Supported HDD sizes
2.5"
Intelligent Platform Management Interface (IPMI) support
Yes
Ethernet interface type
Gigabit Ethernet
CPU configuration (max)
1
BIOS type
AMI
Chassis type
Mini (1U)
PCI Express x8 (Gen 3.x) slots
1
Number of 2.5" bays
1
Weight & dimensions
Package width
15" (381 mm)
Package depth
5.59" (142 mm)
Package height
10.9" (276 mm)
Package weight
7.5 lbs (3.4 kg)
Width
10" (254 mm)
Weight
3.44 lbs (1.56 kg)
Height
1.69" (43 mm)
Depth
8.9" (226 mm)
Supermicro SuperServer E300-8D
| Length | 22.60 cm |
| Width | 25.40 cm |
| Height | 4.30 cm |
| Weight | 1.560000 kgs |
