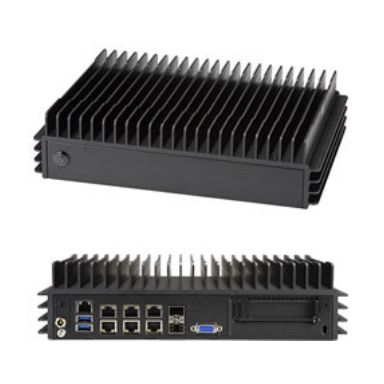

SuperServer E302-9D
In Stock
|
Call For Price
(0808 189 1246)
Processor
Tjunction
100 °C
Thermal Monitoring Technologies
Yes
Thermal Design Power (TDP)
60 W
Supported instruction sets
AVX 2.0
Stepping
M1
Scalability
1S
Processor threads
8
Processor operating modes
64-bit
Processor lithography
14 nm
Processor codename
Skylake
Processor code
SR3ZW
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2400 MHz
Maximum number of PCI Express lanes
32
Maximum internal memory supported by processor
512 GB
Idle States
Yes
Execute Disable Bit
Yes
Embedded options available
Yes
Bus type
UPI
Processor cache type
Smart Cache
Processor cache
8 MB
Conflict-Free processor
Yes
Processor frequency
2.2 GHz
Processor boost frequency
3 GHz
Number of processors installed
1
Processor model
D-2123IT
Processor socket
BGA 2518
Processor cores
4
Processor manufacturer
Intel
Processor family
Intel® Xeon® D
Memory
Internal memory
512 GB
Memory slots
4
Memory clock speed
2666 MHz
Maximum internal memory
512 GB
Internal memory type
DDR4-SDRAM
Storage
Optical drive type
No
Graphics
On-board graphics card model
Aspeed AST2500
On-board graphics card
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
Ethernet LAN (RJ-45) ports
9
Expansion slots
PCI Express slots version
3.0
PCI Express x8 (Gen 3.x) slots
1
Optical drive
Optical drive type
No
Design
Optical drive type
No
Chassis type
Desktop
Product colour
Black
Performance
Trusted Platform Module (TPM)
Yes
Harmonized System (HS) code
84714100
Processor special features
Enhanced Intel SpeedStep Technology
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel® OS Guard
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel® Turbo Boost Technology
2.0
Intel TSX-NI
Yes
Intel Trusted Execution Technology
Yes
Intel Software Guard Extensions (Intel SGX)
No
Intel® Secure Key
Yes
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel Enhanced Halt State
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Intel 64
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel TSX-NI version
1.00
Intel Secure Key Technology version
1.00
Intel QuickAssist Technology
No
Processor ARK ID
136429
CPU configuration (max)
1
Power
Power supply
150 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
8 - 90%
Storage relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 40 °C
Certificates
Certification
RoHS
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Trusted Platform Module (TPM)
Yes
Ethernet interface type
10 Gigabit Ethernet
CPU configuration (max)
1
Chassis type
Desktop
PCI Express x8 (Gen 3.x) slots
1
Logistics data
Harmonized System (HS) code
84714100
Weight & dimensions
Package width
381 mm
Package depth
142 mm
Package height
276 mm
Package weight
3.4 kg
Width
295 mm
Weight
1.56 kg
Height
206 mm
Depth
76 mm
Packaging data
Package width
381 mm
Package depth
142 mm
Package height
276 mm
Package weight
3.4 kg
Other features
CPU configuration (max)
1
SuperServer E302-9D
