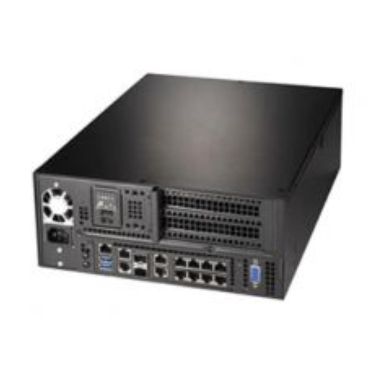

Supermicro SuperServer E403-9D-4C-FN13TP
In Stock
|
Call For Price
(0808 189 1246)
 SPECIFICATIONS
Product Description
Supermicro SuperServer E403-9D-4C-FN13TP - box
Type
Server - box
Server Scalability
1-way
Cache Memory
8.25 MB
Cache Per Processor
8.25 MB
Storage Controller
RAID (SATA 6Gb/s)
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
ASPEED AST2500
Networking
GigE 10 GigE
Power
AC 120/230 V (50 - 60 Hz)
Color
Black
Dimensions (WxDxH)
10.5 in x 16 in x 4.3 in
Weight
16.98 lbs
General
Type
Server
Product Form Factor
Box
Server Scalability
1-way
Internal Bays Qty
4
Color
Black
Processor / Chipset
CPU
Intel Xeon D-2123IT / 2.2 GHz
Max Turbo Speed
3 GHz
Number of Cores
Quad-Core
CPU Qty
1
Max CPU Qty
1
Motherboard Name
Supermicro X11SDW-4C-TP13F
Cache Memory
Installed Size
8.25 MB
Cache Per Processor
8.25 MB
RAM
Installed Size
0 GB / 512 GB (max)
Technology
DDR4 SDRAM - ECC
Form Factor
DIMM 288-pin
Slots
4 (total) / 4 (empty)
Hard Drive
Type
No HDD
Storage Controller
Type
1 x RAID
Controller Interface Type
SATA 6Gb/s
Channel Qty
4
RAID Level
RAID 0 RAID 1 RAID 5 RAID 10
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
ASPEED AST2500
Video Interfaces
VGA
Networking
Remote Management Protocol
IPMI 2.0
Expansion / Connectivity
Bays
4 (total) / 4 (free) x internal 2.5"
Miscellaneous
Included Accessories
Air shroud
Cables Included
Serial ATA cable (2 pcs.)
Compliant Standards
RoHS
Power
Device Type
Power supply
Voltage Required
AC 120/230 V (50 - 60 Hz)
Power Provided
600 Watt
80 PLUS Certification
80 PLUS Gold
Power Factor Correction
Yes
Dimensions & Weight
Width
10.5 in
Depth
16 in
Height
4.3 in
Weight
16.98 lbs
Supermicro SuperServer E403-9D-4C-FN13TP
| Length | 40.64 cm |
| Width | 26.67 cm |
| Height | 10.92 cm |
| Weight | 7.700000 kgs |
