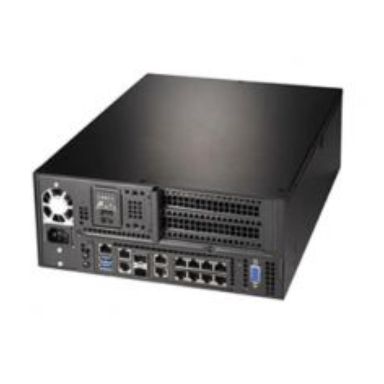

Supermicro SuperServer E403-9D-8CN-FN13TP
In Stock
|
Call For Price
(0808 189 1246)
SPECIFICATIONS
Product Description
Supermicro SuperServer E403-9D-8CN-FN13TP - box - Xeon
Type
Server - box
Server Scalability
1-way
Cache Memory
11 MB
Cache Per Processor
11 MB
Storage Controller
RAID (SATA 6Gb/s)
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
ASPEED AST2500
Networking
GigE 10 GigE
Power
AC 120/230 V (50 - 60 Hz)
OS Provided
No operating system
Color
Black
Dimensions (WxDxH)
10.5 in x 16 in x 4.3 in
Weight
16.98 lbs
General
Type
Server
Product Form Factor
Box
Server Scalability
1-way
Internal Bays Qty
4
Color
Black
Processor / Chipset
CPU
Intel Xeon D-2146NT / 2.3 GHz
Max Turbo Speed
3 GHz
Number of Cores
8-core
CPU Qty
1
Motherboard Name
Supermicro X11SDW-8C-TP13F
Cache Memory
Installed Size
11 MB
Cache Per Processor
11 MB
RAM
Installed Size
0 GB / 512 GB (max)
Technology
DDR4 SDRAM - ECC
Form Factor
DIMM 288-pin
Slots
4 (total) / 4 (empty)
Hard Drive
Type
No HDD
Storage Controller
Type
1 x RAID
Controller Interface Type
SATA 6Gb/s
Channel Qty
4
RAID Level
RAID 0 RAID 1 RAID 5 RAID 10
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
ASPEED AST2500
Video Interfaces
VGA
Networking
Remote Management Protocol
IPMI 2.0
Features
KVM over IP support
Expansion / Connectivity
Bays
4 (total) / 4 (free) x internal 2.5"
Miscellaneous
Included Accessories
Air shroud
Cables Included
Serial ATA cable (2 pcs.)
Compliant Standards
RoHS
Power
Device Type
Power supply
Voltage Required
AC 120/230 V (50 - 60 Hz)
Power Provided
600 Watt
80 PLUS Certification
80 PLUS Gold
Power Factor Correction
Yes
Operating System / Software
OS Provided
No operating system
Dimensions & Weight
Width
10.5 in
Depth
16 in
Height
4.3 in
Weight
16.98 lbs
Supermicro SuperServer E403-9D-8CN-FN13TP
| Length | 40.64 cm |
| Width | 26.67 cm |
| Height | 10.92 cm |
| Weight | 7.700000 kgs |
