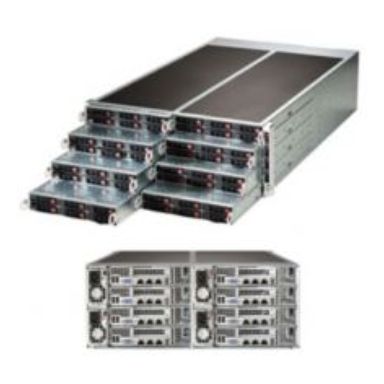

Supermicro SuperServer F618R2-RC1+
In Stock
|
Call For Price
(0808 189 1246)
SPECIFICATIONS
Product Description
Supermicro SuperServer F618R2-RC1+ - rack-mountable
Type
Cluster (8 nodes) - rack-mountable
Height (Rack Units)
4U
Server Scalability
2-way
Processor
No CPU
Processor Socket
LGA2011-v3 Socket
Server Storage Bays
2.5"
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
ASPEED AST2400
Networking
GigE
Cluster Configuration
8 - computing node
OS Provided
No operating system
Color
Black
Dimensions (WxDxH)
17.6 in x 29 in x 7 in
Weight
150 lbs
General
Type
Cluster (8 nodes)
Product Form Factor
Rack-mountable - 4U
Server Scalability
2-way
Cluster Configuration
8 - computing node
Color
Black
Processor / Chipset
CPU
No CPU
Max CPU Qty
2
CPU Upgradability
Upgradable
CPU Socket
LGA2011-v3 Socket
Chipset Type
Intel C612
RAM
Installed Size
0 GB / 2 TB (max)
Technology
DDR4 SDRAM - ECC
Form Factor
DIMM 288-pin
Slots
16 (total) / 16 (empty)
Hard Drive
Type
No HDD
Storage Controller
Type
1 x RAID
Controller Interface Type
SAS 12Gb/s
Storage Controller Name
LSISAS3108
Channel Qty
6
Storage Controller (2nd)
Type
1 x SATA
Controller Interface Type
SATA-600 / PCIe
RAID Level
RAID 0 RAID 1 RAID 5 RAID 10
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
ASPEED AST2400
Video Interfaces
VGA
Networking
Ethernet Ports
2 x Gigabit Ethernet
Ethernet Controller
Intel I350-AM2
Data Link Protocol
Ethernet Fast Ethernet Gigabit Ethernet
Remote Management Protocol
IPMI 2.0
Features
ACPI support KVM over IP support
Cluster
Shared Storage Power Supply
4 redundant hot plug power supplies
Power Supply Capacity
4x2000 Watt
Expansion / Connectivity
Bays
6 (total) / 6 (free) x hot-swap 2.5"
Miscellaneous
Included Accessories
8 x riser cards 16 x CPU heatsinks
Cables Included
Mini SAS HD cable (16 pcs.)
Compliant Standards
Plug and Play APM 1.2 RoHS ACPI 4.0
Operating System / Software
OS Provided
No operating system
Dimensions & Weight
Width
17.6 in
Depth
29 in
Height
7 in
Weight
150 lbs
Supermicro SuperServer F618R2-RC1+
| Length | 29 cm |
| Width | 17.6 cm |
| Height | 7 cm |
| Weight | 1.000000 kgs |
