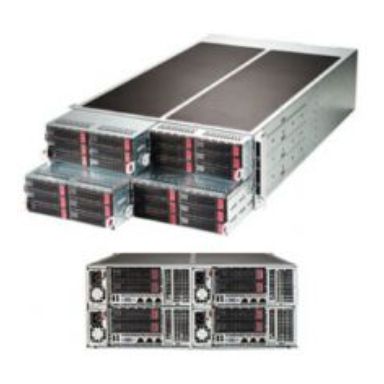

Supermicro SuperServer F628R3-RTBN+
In Stock
|
Call For Price
(0808 189 1246)
SPECIFICATIONS
Product Description
Supermicro SuperServer F628R3-RTBN+ - rack-mountable
Type
Cluster (4 nodes) - rack-mountable
Height (Rack Units)
4U
Server Scalability
2-way
Processor
No CPU
Processor Socket
LGA2011-v3 Socket
Storage Controller
RAID (SATA 6Gb/s)
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
ASPEED AST2400
Networking
GigE
Cluster Configuration
4 - computing node
Power
(50/60 Hz)
OS Provided
No operating system
Color
Black
Dimensions (WxDxH)
17.6 in x 29 in x 7 in
Weight
105.01 lbs
General
Type
Cluster (4 nodes)
Product Form Factor
Rack-mountable - 4U
Server Scalability
2-way
Cluster Configuration
4 - computing node
Color
Black
Processor / Chipset
CPU
No CPU
Max CPU Qty
2
CPU Upgradability
Upgradable
CPU Socket
LGA2011-v3 Socket
Chipset Type
Intel C612
RAM
Installed Size
0 GB / 2 TB (max)
Technology
DDR4 SDRAM - ECC
Form Factor
DIMM 288-pin
Slots
16 (total) / 16 (empty)
Hard Drive
Type
No HDD
Storage Controller
Type
1 x RAID
Controller Interface Type
SATA 6Gb/s
Channel Qty
10
RAID Level
RAID 0 RAID 1 RAID 5 RAID 10
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
ASPEED AST2400
Video Interfaces
VGA
Networking
Ethernet Ports
2 x Gigabit Ethernet
Ethernet Controller
Intel I350-AM2
Remote Management Protocol
IPMI 2.0
Features
KVM over IP support
Expansion / Connectivity
Bays
8 (total) / 8 (free) x hot-swap 3.5"
Miscellaneous
Included Accessories
8 x CPU Heatsink
Cables Included
SGPIO cable (8 pcs.)
Power
Device Type
Power supply
Installed Qty
4
Max Supported Qty
4
Nominal Voltage
(50/60 Hz)
Power Provided
1280 Watt
80 PLUS Certification
80 PLUS Platinum
Operating System / Software
OS Provided
No operating system
Dimensions & Weight
Width
17.6 in
Depth
29 in
Height
7 in
Weight
105.01 lbs
Supermicro SuperServer F628R3-RTBN+
| Length | 29 cm |
| Width | 17.6 cm |
| Height | 7 cm |
| Weight | 1.000000 kgs |
