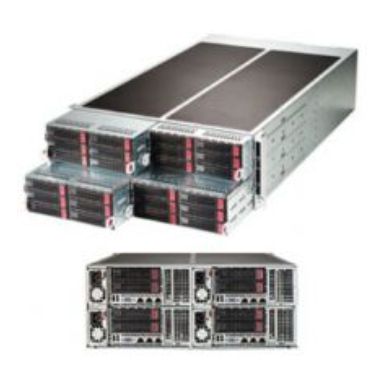

Supermicro SuperServer F628R3-RTBPTN+
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| SPECIFICATIONS | |
|---|---|
| Product Description | Supermicro SuperServer F628R3-RTBPTN+ - rack-mountable |
| Type | Cluster (4 nodes) - rack-mountable |
| Height (Rack Units) | 4U |
| Server Scalability | 2-way |
| Processor | No CPU |
| Processor Socket | LGA2011-v3 Socket |
| RAM | 0 GB (installed) / 1 TB (max) - DDR4 SDRAM - ECC |
| Storage Controller | RAID (SATA 6Gb/s); NVMe |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2400 |
| Networking | GigE 10 GigE |
| Cluster Configuration | 4 - computing node |
| Power | (50/60 Hz) |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Color | Black |
| Dimensions (WxDxH) | 17.6 in x 29 in x 7 in |
| Weight | 105.01 lbs |
| General | |
| Type | Cluster (4 nodes) |
| Product Form Factor | Rack-mountable - 4U |
| Server Scalability | 2-way |
| Cluster Configuration | 4 - computing node |
| Color | Black |
| Processor / Chipset | |
| CPU | No CPU |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA2011-v3 Socket |
| Chipset Type | Intel C612 |
| RAM | |
| Installed Size | 0 GB / 1 TB (max) |
| Technology | DDR4 SDRAM - ECC |
| Form Factor | DIMM 288-pin |
| Slots | 16 (total) / 16 (empty) |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 10 |
| RAID Level | RAID 0 RAID 1 RAID 5 RAID 10 |
| Storage Controller (2nd) | |
| Type | 1 x NVMe |
| Channel Qty | 2 |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | ASPEED AST2400 |
| Video Interfaces | VGA |
| Networking | |
| Ethernet Ports | 2 x 10 Gigabit Ethernet |
| Ethernet Controller | Intel X540 |
| Remote Management Protocol | IPMI 2.0 |
| Features | KVM over IP support |
| Expansion / Connectivity | |
| Bays | 8 (total) / 8 (free) x hot-swap 3.5" |
| Miscellaneous | |
| Included Accessories | 8 x CPU Heatsink |
| Cables Included | SGPIO cable (8 pcs.) |
| Features | UEFI BIOS |
| Compliant Standards | Plug and Play ACPI 2.0 APM 1.2 RoHS |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Installed Qty | 4 |
| Max Supported Qty | 4 |
| Nominal Voltage | (50/60 Hz) |
| Power Provided | 1280 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Operating System / Software | |
| OS Provided | No operating system |
| Dimensions & Weight | |
| Width | 17.6 in |
| Depth | 29 in |
| Height | 7 in |
| Weight | 105.01 lbs |
Supermicro SuperServer F628R3-RTBPTN+
| Length | 29 cm |
| Width | 17.6 cm |
| Height | 7 cm |
| Weight | 1.000000 kgs |
