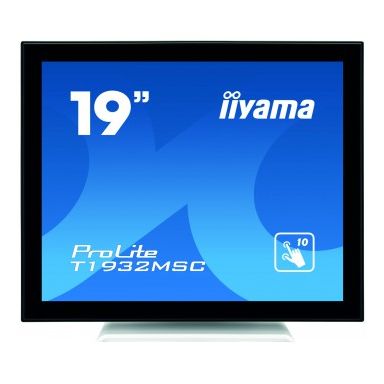

iiyama ProLite T1932MSC-W5AG touch screen monitor 48.3 cm (19") 1280 x 1024 pixels Black,White Multi-touch Multi-user
In Stock
|
Call For Price
(0808 189 1246)
Display
Display number of colours
16.78 million colours
Display technology
IPS
Display type
LED
Viewing angle- vertical
178°
Viewing angle- horizontal
178°
Vertical scan range
50 - 75 Hz
Touchscreen technology
Projected capacitive system
Tilt angle range
5 - 90°
Separate H/V sync
Yes
Pixel pitch
0.2928 x 0.2928 mm
Horizontal scan range
31 - 80 kHz
Display viewable area (HxV)
374.8 x 300 mm
Display resolution
1280 x 1024 pixels
Display diagonal (metric)
48 cm
Aspect ratio
5:4
Display diagonal
48.3 cm (19")
Contrast ratio (typical)
1000:1
Display brightness
215 cd/m²
Response time
14 ms
Native aspect ratio
5:4
Design
International Protection (IP) code
IP54
Product colour
Black- White
Certification
CB- CE- TÃV-Bauart- CU- cULus- VCCI
Performance
Touch technology
Multi-touch
Built-in camera
No
Number of speakers
2
On Screen Display (OSD) languages
German- English- Spanish- French- Italian- Japanese
Number of OSD languages
7
Touchscreen type
Multi-user
Touchscreen technology
Projected capacitive system
RMS rated power
2 W
Plug and Play
Yes
OmniTapps Multitouch compatibility
No
HDCP
Yes
Built-in speaker(s)
Yes
Ports & interfaces
PC Audio in
Yes
VGA (D-Sub) ports quantity
1
HDMI ports quantity
1
DisplayPorts quantity
1
Cables included
Audio (3.5mm)- DisplayPort- HDMI- USB
HDMI
Yes
USB Touch port
Yes
Ergonomics
Cable lock slot
Yes
Wall mountable
Yes
Panel mounting interface
100 x 100 mm
Tilt angle range
5 - 90°
Cable lock slot type
Kensington
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (off)
2 W
Power supply type
AC
Power consumption (typical)
25 W
Power consumption (standby)
2 W
Energy efficiency scale
A to G
Energy efficiency class (SDR)
E
Energy consumption (SDR) per 1000 hours
14 kWh
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%
Technical details
Touchscreen type
Multi-user
Power supply type
AC
Plug and Play
Yes
HDCP
Yes
Audio
RMS rated power
2 W
Built-in speaker(s)
Yes
Colour
Product colour
Black- White
Software
OmniTapps Multitouch compatibility
No
Certificates
Certification
CB- CE- TÃV-Bauart- CU- cULus- VCCI
Weight & dimensions
Width (without stand)
43.2 cm
Depth (without stand)
39.1 cm
Height (without stand)
21.9 cm
Weight (without stand)
6.9 kg
Packaging data
Quick start guide
Yes
Packaging content
Quick start guide
Yes
Cables included
Audio (3.5mm)- DisplayPort- HDMI- USB
Other features
Energy efficiency scale
A to G
iiyama ProLite T1932MSC-W5AG touch screen monitor 48.3 cm (19") 1280 x 1024 pixels Black,White Multi-touch Multi-user
| Length | 39.10 cm |
| Width | 43.20 cm |
| Height | 21.90 cm |
| Weight | 6.900000 kgs |
