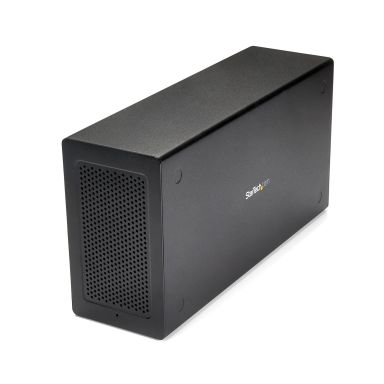

StarTech.com Thunderbolt 3 PCIe Expansion Chassis with DisplayPort - PCIe x16

Thunderbolt 3 ports quantity

2

Host interface

Thunderbolt 3

USB 2.0 ports quantity

0

Ethernet LAN (RJ-45) ports

0

HDMI ports quantity

0

DisplayPorts quantity

1

Connectivity technology

Wired

Ethernet LAN

No

Ethernet LAN (RJ-45) ports

0

Product colour

Black

Card reader integrated

No

LED indicators

Power

Data transfer rate

40 Gbit/s

Rubber feet

Yes

Housing material

Aluminium, Steel

Maximum airflow

14.06 cfm

Product colour

Black

Data transfer rate

40 Gbit/s

Cable length

0.5 m

Sustainability compliance

Yes

Harmonized System (HS) code

84733020

Compliance certificates

CE, RoHS

Maximum port bandwidth

3.94 GB/s

Products per master (outer) case

3 pc(s)

Master (outer) case width

375 mm

Master (outer) case length

455 mm

Master (outer) case height

325 mm

Built-in fan

Yes

Number of fans

1 fan(s)

Bearing type

Sleeve bearing

Fan diameter

6 cm

Noise level

24.55 dB

Maximum airflow

14.06 cfm

Card reader integrated

No

Power source type

DC

Input current

2 A

Power plug type

Type N

Compatible power plug types

AU, EU, JP, UK, US

AC input voltage

100 - 240 V

Power consumption (typical)

65 W

Output voltage

12 V

Output current

5.417 A

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Mac operating systems supported

Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Mac compatibility

Yes

LED indicators

Power

Operating temperature (T-T)

5 - 35 °C

Storage temperature (T-T)

-20 - 50 °C

Operating relative humidity (H-H)

20 - 80%

Sustainability compliance

Yes

Weight

1.6 kg

Width

142 mm

Depth

280 mm

Height

82 mm

Package weight

3.1 kg

Package width

290 mm

Package depth

360 mm

Package height

145 mm

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Mac operating systems supported

Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Product colour

Black

LED indicators

Power

Rubber feet

Yes

Package weight

3.1 kg

Package width

290 mm

Package depth

360 mm

Package height

145 mm

Quick start guide

Yes

Cables included

Thunderbolt

AC adapter included

Yes

Products per master (outer) case

3 pc(s)

Master (outer) case width

375 mm

Master (outer) case length

455 mm

Master (outer) case height

325 mm

Harmonized System (HS) code

84733020

Chipset

Intel - Alpine Ridge DSL6540

Cable length

0.5 m

Maximum port bandwidth

3.94 GB/s
