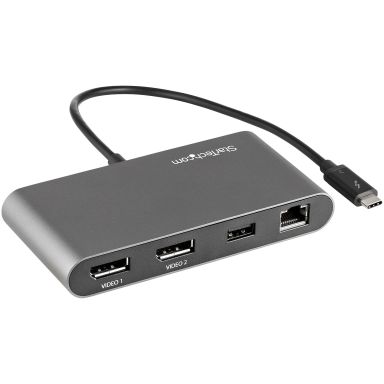

StarTech.com Thunderbolt 3 Mini Dock - Portable Dual Monitor TB3 Docking Station with DisplayPort 4K

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Host interface

Thunderbolt 3

USB 2.0 ports quantity

0

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

0

DisplayPorts quantity

2

Microphone in

No

Headphone outputs

0

Connectivity technology

Wired

Networking standards

IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u

Wake-on-LAN ready

Yes

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Ethernet LAN (RJ-45) ports

1

Maximum digital resolution

3840 x 2160 pixels

Number of displays supported

2

Product colour

Grey

Card reader integrated

No

Data transfer rate

5 Gbit/s

Housing material

Aluminium, Plastic

Product colour

Grey

Data transfer rate

5 Gbit/s

Cable length

0.28 m

Harmonized System (HS) code

84733020

Compliance certificates

CE, RoHS

Products per master (outer) case

24 pc(s)

Master (outer) case width

300 mm

Master (outer) case length

437 mm

Master (outer) case height

270 mm

Card reader integrated

No

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Server operating systems supported

Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 x64

Operating temperature (T-T)

5 - 40 °C

Storage temperature (T-T)

-20 - 70 °C

Operating relative humidity (H-H)

0 - 95%

Weight

147.8 g

Width

69 mm

Depth

124 mm

Height

27 mm

Package weight

270 g

Package width

139 mm

Package depth

195 mm

Package height

37 mm

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Product colour

Grey

Package weight

270 g

Package width

139 mm

Package depth

195 mm

Package height

37 mm

Manual

Yes

Products per master (outer) case

24 pc(s)

Master (outer) case width

300 mm

Master (outer) case length

437 mm

Master (outer) case height

270 mm

Harmonized System (HS) code

84733020

Chipset

Intel JHL6540 (Alpine Ridge), Texas Instruments TPS65983A, Parade PS176, ASMedia ASM1042A, Intel WGI210

Cable length

0.28 m
