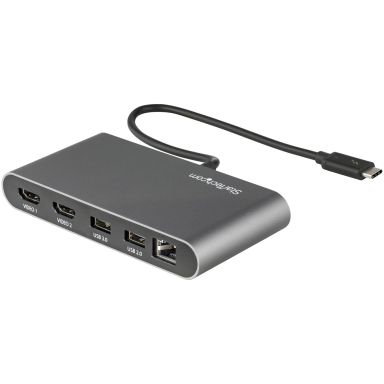

StarTech.com Thunderbolt 3 Mini Dock - Portable Dual Monitor TB3 Docking Station with HDMI 4K 60Hz -
In Stock
|
£66.56
£79.87 (Inc. VAT)
get it next day (UK Mainland Orders)
StarTech.com Thunderbolt 3 Mini Dock - Portable Dual Monitor TB3 Docking Station with HDMI 4K 60Hz -
Write Your Own Review
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Host interface
Thunderbolt 3
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
2
Microphone in
No
Headphone outputs
0
Connectivity technology
Wired
Network
Networking standards
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Wake-on-LAN ready
Yes
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports
1
Performance
Maximum digital resolution
3840 x 2160 pixels
Number of displays supported
2
Product colour
Grey
Card reader integrated
No
Technical details
Product colour
Grey
Cable length
0.28 m
Harmonized System (HS) code
84733020
Compliance certificates
RoHS
Products per master (outer) case
24 pc(s)
Master (outer) case width
300 mm
Master (outer) case length
437 mm
Master (outer) case height
270 mm
Storage
Card reader integrated
No
Software
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Server operating systems supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 x64
Operational conditions
Operating temperature (T-T)
5 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Weight & dimensions
Weight
147.8 g
Width
69 mm
Depth
124 mm
Height
27 mm
Package weight
270 g
Package width
139 mm
Package depth
195 mm
Package height
37 mm
Design
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Product colour
Grey
Packaging data
Package weight
270 g
Package width
139 mm
Package depth
195 mm
Package height
37 mm
Packaging content
Manual
Yes
Logistics data
Products per master (outer) case
24 pc(s)
Master (outer) case width
300 mm
Master (outer) case length
437 mm
Master (outer) case height
270 mm
Harmonized System (HS) code
84733020
Other features
Chipset
Intel JHL6540 (Alpine Ridge), Texas Instruments TPS65983A, Parade PS176, ASMedia ASM1042A, Intel WGI210
Cable length
0.28 m
| Length | 19.5 cm |
| Width | 13.9 cm |
| Height | 3.7 cm |
| Weight | 0.27 kgs |
