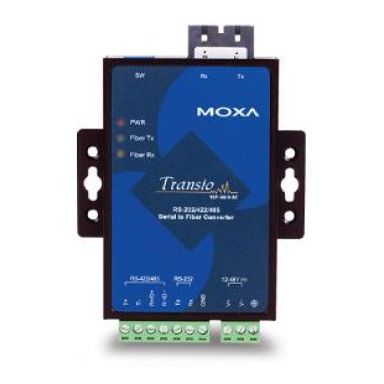

Moxa TCF-142-M-SC-T serial converter/repeater/isolator RS-232/422/485 Fiber (SC)
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Technical details | |
|---|---|
| Wavelength | 850 nm |
| TX output | -5 dB |
| Transmission distance (multi-mode) | 5 km |
| Surge protection voltage | 2 kV |
| RX sensitivity | -20 dB |
| RS-422 signals | RxD+-RxD--SGND-TxD+-TxD- |
| RS-232 signals | GND-Rx-Tx |
| Over current protection | Yes |
| Output interface | Fiber (SC) |
| Host interface | RS-232/422/485 |
| Fiber optic connector | SC |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Baud rate | 921.6 Kbit/s |
| Weight & dimensions | |
| Dimensions (WxDxH) | 67 x 100 x 22 mm |
| Power | |
| Power consumption | 140 mA |
| Input voltage | 12 - 48 V |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Safety | UL/CUL- TUV |
| Certification | EN- FCC |
| Indication | |
| LED indicators | Yes |
Moxa TCF-142-M-SC-T serial converter/repeater/isolator RS-232/422/485 Fiber (SC)
