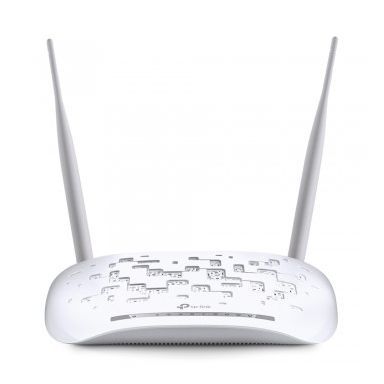

TP-LINK 300Mbps Wireless N USB VDSL/ADSL Modem Router
In Stock
|
Call For Price (0808 189 1246)
Wireless LAN features
WLAN data transfer rates supported
300 Mbit/s
Top Wi-Fi standard
Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)
300 Mbit/s
Wi-Fi band
Single-band (2.4 GHz)
Wi-Fi standards
802.11b-802.11g-Wi-Fi 4 (802.11n)
Ethernet LAN features
Ethernet WAN
Yes
Ethernet LAN interface type
Fast Ethernet
Ethernet LAN
Yes
Ethernet LAN data rates
10-100 Mbit/s
Cabling technology
10/100Base-T(X)
DSL features
DSL WAN
Yes
xDSL connection
Yes
VDSL2
Yes
Mobile network
SIM card slot
No
3G/4G USB modem compatibility
No
Network
Network address translation (NAT)
Yes
Ethernet LAN interface type
Fast Ethernet
Ethernet LAN
Yes
VPN tunnels quantity
10
VPN support
PPTP- L2TP- IPSec Pass-through
Port forwarding
Yes
Networking standards
IEEE 802.11b-IEEE 802.11g-IEEE 802.11n-IEEE 802.3-IEEE 802.3u
Ethernet LAN data rates
10-100 Mbit/s
Cabling technology
10/100Base-T(X)
VPN Passthrough
Yes
Dynamic DNS (DDNS)
Yes
Protocols
DMZ support
No
Universal Plug and Play (UPnP)
Yes
DHCP client
Yes
Management features
Universal Plug and Play (UPnP)
Yes
WPS push button
Yes
Web-based management
Yes
Reset button
Yes
Quality of Service (QoS) support
Yes
Security
VPN tunnels quantity
10
VPN support
PPTP- L2TP- IPSec Pass-through
URL filtering
Yes
Security algorithms
128-bit AES-128-bit WEP-192-bit AES-256-bit AES-3DES-64-bit WEP-DES-MD5-SHA-1-WPA-WPA-PSK-WPA2-WPA2-PSK
Network address translation (NAT)
Yes
MAC address filtering
Yes
IP address filtering
Yes
DMZ support
No
Filtering
Yes
Stateful Packet Inspection (SPI)
Yes
Performance
Windows operating systems supported
Windows 10-Windows 2000-Windows 7-Windows 8-Windows 8.1-Windows 98SE-Windows NT-Windows XP
Mac operating systems supported
macOS
Linux operating systems supported
Yes
Firmware upgradeable
Yes
Weight & dimensions
Package width
260 mm
Package weight
550 g
Package height
70 mm
Package depth
232 mm
Width
195 mm
Height
36 mm
Depth
130 mm
Certificates
Certification
CE- FCC- RoHS
Packaging content
Quick start guide
Yes
Cables included
LAN (RJ-45)- Phone (RJ-11)
AC adapter included
Yes
WAN connection
Ethernet WAN
Yes
DSL WAN
Yes
SIM card slot
No
3G/4G USB modem compatibility
No
WAN connection type
RJ-45
Ports & interfaces
RJ-11 ports quantity
1
Ethernet LAN (RJ-45) ports
4
Design
Product type
Tabletop router
Wall mountable
Yes
On/off switch
Yes
LED indicators
Yes
Product colour
White
Software
Windows operating systems supported
Windows 10-Windows 2000-Windows 7-Windows 8-Windows 8.1-Windows 98SE-Windows NT-Windows XP
Mac operating systems supported
macOS
Linux operating systems supported
Yes
Antenna
Antennas quantity
2
Antenna type
External
Antenna gain level (max)
5 dBi
Features
Firmware upgradeable
Yes
Certification
CE- FCC- RoHS
Power
Power source type
DC
Output voltage
12 V
Output current
1 A
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
System requirements
Windows operating systems supported
Windows 10-Windows 2000-Windows 7-Windows 8-Windows 8.1-Windows 98SE-Windows NT-Windows XP
Mac operating systems supported
macOS
Linux operating systems supported
Yes
Packaging data
Quick start guide
Yes
Package width
260 mm
Package weight
550 g
Package height
70 mm
Package depth
232 mm
Cables included
LAN (RJ-45)- Phone (RJ-11)
AC adapter included
Yes
Other features
xDSL connection
Yes
WLAN data transfer rates supported
300 Mbit/s
USB version
2.0
USB ports quantity
1
Frequency range
2.4 - 2.4835 GHz
TD-W9970
300Mbps Wireless N USB VDSL2 Modem Router
- Featuring dual WAN ports, compatible with VDSL/ADSL/Fiber/Cable services
- Providing broadband speeds up to 100Mbps over VDSL2 and backward compatible with ADSL
- Share files, media and printers with your friends or family using the multi-functional USB port
USB Sharing Port – Easy Sharing
Using the TD-W9970’s multi-functional USB 2.0 port, users can share printers, files and media either throughout the network at home with several different computers or even away, using the device’s FTP server functions so that you never have to part with your files.
Virtually Impregnable-10 VPN IPsec tunnels
The ability to support up to 10 IPsec VPN tunnels simultaneously gives TD-W9970 users the flexibility to setup a virtual private network, to guarantee network security and take advantage of network access whether at home or away, for work or simply to access files from their local networks.
Up to 100Mbps broadband speed
TheTD-W9970 supports VDSL2 and backward compatible with ADSL2+/ADSL2/ADSL, featuring high broadband speeds of up to 100Mbps. It is designed to support the wide deployment of triple play services such as voice, video, data, high-definition television (HDTV) and interactive gaming.
What This Product Does
TP-LINK’s TD-W9970, comes with the latest ITU-T G.993.2 VDSL2 standard, providing up to 100Mbps speed downstream and up stream, compatible with ADSL, fiber and cable services. With 300Mbps wireless speed over 2.4GHz band, the TD-W9970 is a perfect choice for users in search of seamless HD video streaming, online gaming and other bandwidth-intensive tasks.
Interchangeable LAN/WAN Port –Compatible with Fiber/Cable service
The TD-W9970 supports VDSL/ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections. Featuring an interchangeable LAN/WAN port, it is compatible with Fiber/Cable service. This unique feature makes it easier when users need to change to fiber or cable services when necessary.
Advanced Features
- Ethernet WAN (EWAN)
- Guest Network, Wireless Schedule
- Parent Control
- Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
- Dynamic Host Configuration Protocol (DHCP), DHCP relay;
- Network Address Translation (NAT);
- PVC/Ethernet Port Grouping
- Static Routing, RIP v1/v2 (optional);
- DNS Relay, DDNS,
- IGMP snooping V1/2
- IGMP Multicast,
- UPnP
| Length | 23.2 cm |
| Width | 26 cm |
| Height | 7 cm |
| Weight | 0.55 kgs |
