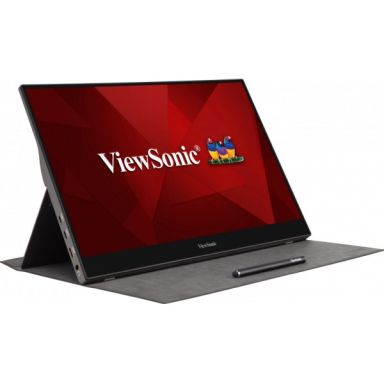

Viewsonic TD1655 touch screen monitor 39.6 cm (15.6") 1920 x 1080 pixels Multi-touch Multi-user Blac
In Stock
|
$231.13
$277.36 (Inc. VAT)
Display
Display number of colours
262144 colours
Display technology
LED
High frequency rate
60 Hz
Viewing angle- vertical
178°
Viewing angle- horizontal
178°
Vertical scan range
50 - 75 Hz
Touchscreen technology
Projected capacitive system
Tilt angle range
-20 - 60°
Supported graphics resolutions
640 x 480 (VGA)-720 x 400-720 x 480-720 x 576-800 x 600 (SVGA)-832 x 624-1024 x 768 (XGA)-1152 x 870-1280 x 1024 (SXGA)-1280 x 720 (HD 720)-1280 x 768 (WXGA)-1280 x 800 (WXGA)-1280 x 960-1360 x 768 (WXGA)-1366 Ñ
768-1400 x 1050 (SXGA+)-1440 x 900 (WXGA+)-1600 x 1200 (UXGA)-1600 x 900-1680 x 1050 (WSXGA+)-1920 x 1080 (HD 1080)
Pixel pitch
0.179 x 0.179 mm
Horizontal scan range
15 - 82 kHz
Display viewable area (HxV)
344 x 194 mm
Display resolution
1920 x 1080 pixels
Display diagonal (metric)
39.6 cm
Contrast ratio (dynamic)
80000000:1
Display diagonal
39.6 cm (15.6")
Contrast ratio (typical)
800:1
Display brightness
250 cd/m²
Response time
6.5 ms
Native aspect ratio
16:9
Panel type
IPS
HD type
Full HD
Design
Product colour
Black- Silver
Certification
cTUVus- FCC-B- ICES003- Energy Star 8.0- EPEAT Bronze- CEC- NRCan- MX-CoC- Mexico Energy- CE- CE EMC- CB- RoHS- ErP- REACH- WEEE- EAC- UkrSEPRO
Performance
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Built-in microphone
No
Built-in camera
No
Number of speakers
2
Touchscreen type
Multi-user
Windows operating systems supported
Windows 10
Touchscreen technology
Projected capacitive system
RMS rated power
1.6 W
Mac operating systems supported
Yes
Built-in speaker(s)
Yes
Ports & interfaces
Cables included
Mini-HDMI- USB Type-C- USB Type-C to USB Type-A
Audio output
1
Built-in USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
Ergonomics
Wall mountable
No
Tilt angle range
-20 - 60°
Tiltable
Yes
Power
AC input voltage
100-240 V
AC input frequency
50/60 Hz
Power supply type
AC
Power consumption (typical)
8 W
Power consumption (standby)
0.5 W
Energy efficiency class (SDR)
C
Energy consumption (SDR) per 1000 hours
8 kWh
Operational conditions
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 90%
Technical details
Height (with stand)
223 mm
Depth (with stand)
16 mm
Touchscreen type
Multi-user
Power supply type
AC
Supported graphics resolutions
640 x 480 (VGA)-720 x 400-720 x 480-720 x 576-800 x 600 (SVGA)-832 x 624-1024 x 768 (XGA)-1152 x 870-1280 x 1024 (SXGA)-1280 x 720 (HD 720)-1280 x 768 (WXGA)-1280 x 800 (WXGA)-1280 x 960-1360 x 768 (WXGA)-1366 Ñ
768-1400 x 1050 (SXGA+)-1440 x 900 (WXGA+)-1600 x 1200 (UXGA)-1600 x 900-1680 x 1050 (WSXGA+)-1920 x 1080 (HD 1080)
Package weight
2.3 kg
Sustainability certificates
CE- EPEAT Bronze- REACH- RoHS
Audio
RMS rated power
1.6 W
Built-in speaker(s)
Yes
Colour
Product colour
Black- Silver
Software
Windows operating systems supported
Windows 10
Mac operating systems supported
Yes
Certificates
Certification
cTUVus- FCC-B- ICES003- Energy Star 8.0- EPEAT Bronze- CEC- NRCan- MX-CoC- Mexico Energy- CE- CE EMC- CB- RoHS- ErP- REACH- WEEE- EAC- UkrSEPRO
Sustainability
Sustainability certificates
CE- EPEAT Bronze- REACH- RoHS
Weight & dimensions
Height (with stand)
223 mm
Depth (with stand)
16 mm
Width (with stand)
355 mm
Weight (with stand)
1 kg
Packaging data
Package width
440 mm
Package depth
288 mm
Package height
89 mm
Package weight
2.3 kg
Packaging content
Cables included
Mini-HDMI- USB Type-C- USB Type-C to USB Type-A
Other features
Height (with stand)
223 mm
Depth (with stand)
16 mm
Viewsonic TD1655 touch screen monitor 39.6 cm (15.6") 1920 x 1080 pixels Multi-touch Multi-user Blac
| Length | 1.60 cm |
| Width | 35.50 cm |
| Height | 22.30 cm |
| Weight | 1.000000 kgs |
