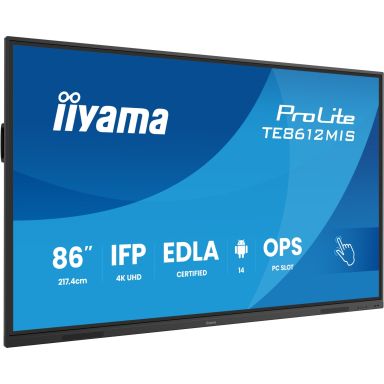

iiyama 86" Interactive 4K UHD Touchscreen elevating interactive collaboration

LED backlight

Yes

Panel type

IPS

Display number of colours

1.07 billion colours

Number of simultaneous touchpoints

40

LED backlighting type

Direct-LED

Touchscreen

Yes

Active display area (W x H)

1895 x 1066 mm

Display technology

LCD

Display diagonal

2.17 m (85.6")

Display resolution

3840 x 2160 pixels

Display brightness

400 cd/m²

HD type

4K Ultra HD

Response time

6.5 ms

Contrast ratio (typical)

1200:1

Contrast ratio (dynamic)

4000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Pixel pitch

0.493 x 0.493 mm

Display diagonal (metric)

217.4 cm

Native aspect ratio

16:9

Horizontal scan range

30 - 135 kHz

Anti-glare screen

Yes

Touchscreen technology

PureTouch-IR

Surface hardness

7H

Multi-touch

Yes

Glass thickness

3 mm

USB connector type

USB Type-A, USB Type-C

Remote (IR) input

1

DisplayPort version

1.2

USB port

Yes

DisplayPorts in

1

HDMI version

2.0

RS-232C

Yes

Wi-Fi standards

Wi-Fi 6 (802.11ax)

Wi-Fi

Yes

PC Audio in

Yes

DisplayPorts quantity

1

Compatible memory cards

MicroSD (TransFlash)

Card reader integrated

Yes

Ethernet LAN

Yes

HDMI ports quantity

3

Ethernet LAN data rates

1000 Mbit/s

VGA (D-Sub) input ports

1

Ethernet LAN (RJ-45) ports

1

USB version

3.2 Gen 1 (3.1 Gen 1)

USB ports quantity

5

OPS module slot

Yes

HDMI input ports quantity

1

HDMI output ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

2

USB Power Delivery (USB PD)

Yes

USB Power Delivery up to

65 W

Audio Return Channel (ARC)

Yes

Number of built-in speakers

2

RMS rated power

32 W

Built-in speaker(s)

Yes

Product design

Interactive flat panel

Placement supported

Indoor

Orientation

Horizontal

Housing material

Metal

Bezel width (top)

1.65 cm

Bezel width (side)

1.65 cm

Bezel width (bottom)

3 cm

Product colour

Black

Panel mounting interface

800 x 600 mm

Certification

CB, CE, TÃœV-Bauart, EAC, ErP, WEEE, REACH

VESA mounting

Yes

Anti-glare screen

Yes

Mounting type

Wall

Bezel colour

Black

Purpose

Universal

Operating hours (hours/days)

24/7

Mean time between failures (MTBF)

50000 h

On Screen Display (OSD) languages

Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Russian, Swedish

On Screen Display (OSD)

Yes

Number of OSD languages

14

HDCP

Yes

Plug and Play

Yes

HDCP version

2.2

Wi-Fi

Yes

Power consumption (off)

0.3 W

Power consumption (typical)

181 W

Power consumption (standby)

0.5 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Energy efficiency scale

A to G

Energy efficiency class (SDR)

G

Energy consumption (SDR) per 1000 hours

181 kWh

Computer system

Yes

Processor family

ARM Cortex

Operating system installed

Android

Internal memory

8 GB

Internal storage capacity

128 GB

Processor manufacturer

ARM

Built-in processor

Yes

On-board graphics card model

ARM Mali-G52

Processor architecture

ARM Cortex-A53+Cortex-A72

Operating system version

14

Display width

1957 mm

Display depth

98 mm

Display height

1160 mm

Display weight

48.5 kg

Package width

2110 mm

Package depth

2110 mm

Package height

1291 mm

Package weight

64.5 kg

Quick start guide

Yes

Batteries included

Yes

Remote control included

Yes

Cables included

AC, HDMI, RS-232

Quick start guide

Yes

Batteries included

Yes

Remote control included

Yes

Cables included

AC, HDMI, RS-232

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Certification

CB, CE, TÃœV-Bauart, EAC, ErP, WEEE, REACH

VESA mounting

Yes

USB connector type

USB Type-A, USB Type-C

Power supply type

Internal

Panel type

IPS

DisplayPort version

1.2

DisplayPorts in

1

Number of simultaneous touchpoints

40

LED backlighting type

Direct-LED

OPS slot

1

Warranty period

5 year(s)

Compliance certificates

RoHS

Processor family

ARM Cortex

Operating system installed

Android

Internal memory

8 GB

Internal storage capacity

128 GB

USB connector type

USB Type-A, USB Type-C

Power supply type

Internal

Panel type

IPS

DisplayPort version

1.2

Housing material

Metal

DisplayPorts in

1

Number of simultaneous touchpoints

40

Wi-Fi standards

Wi-Fi 6 (802.11ax)

Wi-Fi

Yes

Mean time between failures (MTBF)

50000 h

Headphone outputs

1

Headphone connectivity

3.5 mm

Display technology

LCD

Compatible memory cards

MicroSD (TransFlash)

Card reader integrated

Yes

Bezel width (top)

1.65 cm

Bezel width (side)

1.65 cm

Bezel width (bottom)

3 cm

Backlight type

Direct LED

Audio output

3.5mm

Quick start guide

Yes

Plug and Play

Yes

Energy efficiency scale

A to G

OPS module slot

Yes
