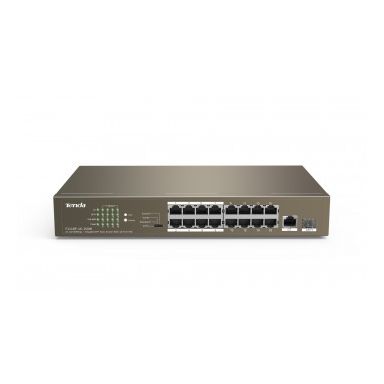

Tenda TEF1118P-16-150W network switch
In Stock
|
Call For Price
(0808 189 1246)
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
18
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Combo SFP ports quantity
1
Gigabit Ethernet (copper) ports quantity
2
Fast Ethernet (copper) ports quantity
16
Virtual LAN features
VLAN support
Yes
Virtual LAN features
Port-based VLAN
Technical details
Form factor
1U
Product colour
Black
Rack mounting
Yes
Sustainability compliance
Yes
Sustainability certificates
CE, RoHS
Compliance certificates
CE, RoHS
Power over Ethernet (PoE)
Power protection features
Overload, Short circuit
Power over Ethernet (PoE) power per port
30 W
Power over Ethernet plus (PoE+) ports quantity
16
Total Power over Ethernet (PoE) budget
130 W
Power over Ethernet (PoE)
Yes
Management features
Switch type
Unmanaged
Switch layer
L2
Network
Cable types supported
Cat5, Cat5e
MAC address auto-learning supported
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Yes
VLAN support
Yes
Flow control support
Yes
Broadcast storm control
Yes
10G support
No
Half duplex
Yes
Virtual LAN features
Port-based VLAN
Data transmission
MAC address table
4096 entries
Switching capacity
7.2 Gbit/s
Store-and-forward
Yes
Jumbo frames support
No
Forwarding rate
5.36 Mpps
Certificates
Certification
FCC, CCC
Design
Wall mountable
Yes
Form factor
1U
Product colour
Black
LED indicators
Link, PoE, Power
Certification
FCC, CCC
Rack mounting
Yes
Performance
Harmonized System (HS) code
85176990
Fanless
Yes
Indication
LED indicators
Link, PoE, Power
Power
Power supply included
Yes
Power protection features
Overload, Short circuit
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power source
AC
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
294 mm
Depth
178.8 mm
Height
44 mm
Sustainability
Sustainability compliance
Yes
Sustainability certificates
CE, RoHS
Logistics data
Harmonized System (HS) code
85176990
