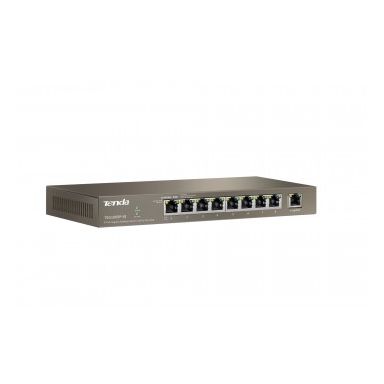

Tenda TEG1009P-EI Gigabit Ethernet (10/100/1000) Grey Power over Ethernet (PoE)
In Stock
|
Call For Price
(0808 189 1246)
Performance
Auto-negotiation
Yes
Plug and Play
Yes
Mean time between failures (MTBF)
50000 h
Harmonized System (HS) code
85176990
Technical details
Product colour
Grey
Mean time between failures (MTBF)
50000 h
Housing material
Metal
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
9
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
Cable types supported
Cat5, Cat5e
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Data transmission
Throughput
1.488 Mpps
MAC address table
4000 entries
Switching capacity
18 Gbit/s
Store-and-forward
Yes
Certificates
Certification
FCC, CE, RoHS
Design
Wall mountable
Yes
Product colour
Grey
LED indicators
Activity, Link, PoE, Power
Housing material
Metal
Certification
FCC, CE, RoHS
Indication
LED indicators
Activity, Link, PoE, Power
Power
Power consumption (max)
107 W
Surge protection voltage
4 kV
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
2.1 A
DC input voltage
51 V
Surge protection
Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
99 W
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
235 mm
Depth
103 mm
Height
27 mm
Logistics data
Harmonized System (HS) code
85176990
Tenda TEG1009P-EI Gigabit Ethernet (10/100/1000) Grey Power over Ethernet (PoE)
