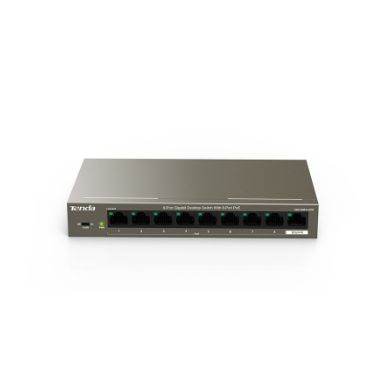

Tenda TEG1109P-8-102W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
In Stock
|
Call For Price
(0808 189 1246)
Performance
Auto-negotiation
Yes
Mean time between failures (MTBF)
50000 h
Harmonized System (HS) code
85176990
Technical details
Product colour
Grey
Mean time between failures (MTBF)
50000 h
Rack mounting
No
Management features
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
9
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Data transmission
MAC address table
16000 entries
Switching capacity
18 Gbit/s
Store-and-forward
Yes
Forwarding rate
13.39 Mpps
Certificates
Certification
FCC?CE?ROHS?CCC
Design
Product colour
Grey
LED indicators
Activity, Link, Power
Certification
FCC?CE?ROHS?CCC
Rack mounting
No
Indication
LED indicators
Activity, Link, Power
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
102 W
Input current
2 A
DC input voltage
51 V
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
92 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
177.5 mm
Depth
104 mm
Height
26 mm
Logistics data
Harmonized System (HS) code
85176990
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
Tenda TEG1109P-8-102W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
