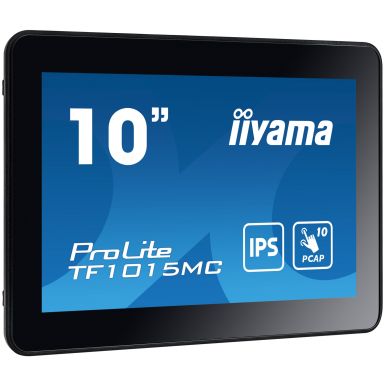

iiyama 10.1" Open Frame PCAP 10 point touch screen equipped with IPS panel technology and a foam seal finish for seamless integration
In Stock
|
£271.78
£326.14 (Inc. VAT)
get it next day (UK Mainland Orders)
Display
Panel type
IPS
Display number of colours
16.7 million colours
Number of simultaneous touchpoints
10
Touchscreen
Yes
Active display area (W x H)
216.96 x 135.6 mm
Display technology
LED
Display diagonal
25.6 cm (10.1")
Display resolution
1280 x 800 pixels
Display brightness
500 cd/m²
HD type
HD
Response time
29 ms
Contrast ratio (typical)
800:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.1695 x 0.1695 mm
Display diagonal (metric)
25.7 cm
Native aspect ratio
16:10
Horizontal scan range
30 - 49.7 kHz
Maximum frame rate
75 fps
Touchscreen technology
Projected capacitive system
Surface hardness
7H
Glass thickness
3.3 mm
Ports & interfaces
USB port
Yes
DisplayPorts quantity
1
Ethernet LAN
Yes
HDMI ports quantity
1
DVI port
No
VGA (D-Sub) input ports
1
Ethernet LAN (RJ-45) ports
1
USB ports quantity
1
Design
Product design
Interactive flat panel
Placement supported
Indoor
Orientation
Horizontal/Vertical
Product colour
Black
Panel mounting interface
100 x 100 mm
Certification
CB, CE, TÃœV-Bauart, EAC, cULus
VESA mounting
Yes
Screen shape
Flat
Wall mountable
Yes
Performance
Purpose
Universal
International Protection (IP) code
IP65
Mean time between failures (MTBF)
50000 h
On Screen Display (OSD) languages
Simplified Chinese, German, English, Spanish, French, Italian, Japanese
On Screen Display (OSD)
Yes
Number of OSD languages
7
HDCP
Yes
Plug and Play
Yes
Power
Power consumption (off)
0.3 W
Power consumption (typical)
6 W
Power consumption (standby)
1.5 W
Energy efficiency scale
A to G
Energy efficiency class (SDR)
C
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
6 kWh
Weight & dimensions
Width (with stand)
260.5 mm
Height (with stand)
183.5 mm
Depth (with stand)
39.5 mm
Weight (with stand)
1.4 kg
Display width
260.5 mm
Display depth
39.5 mm
Display height
183.5 mm
Display weight
1.4 kg
Packaging data
Package width
310 mm
Package depth
310 mm
Package height
160 mm
Package weight
2.7 kg
Quick start guide
Yes
Remote control included
Yes
Cables included
AC, DisplayPort, HDMI, USB
Packaging content
Quick start guide
Yes
Remote control included
Yes
Cables included
AC, DisplayPort, HDMI, USB
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Certificates
Certification
CB, CE, TÃœV-Bauart, EAC, cULus
Technical details
VESA mounting
Yes
Power supply type
External
Panel type
IPS
Number of simultaneous touchpoints
10
Weight (without stand)
2.7 kg
Audio out (mini jack)
1
Weight (with stand)
1.4 kg
Sustainability
European Product Registry for Energy Labelling (EPREL) code
378636
Features
Wall mountable
Yes
Other features
Power supply type
External
Panel type
IPS
Number of simultaneous touchpoints
10
Weight (without stand)
2.7 kg
Width (with stand)
260.5 mm
Viewable size, vertical
13.6 cm
Viewable size, horizontal
21.7 cm
Mean time between failures (MTBF)
50000 h
Height (with stand)
183.5 mm
Display technology
LED
Depth (with stand)
39.5 mm
Quick start guide
Yes
Plug and Play
Yes
Weight (with stand)
1.4 kg
Energy efficiency scale
A to G
iiyama 10.1" Open Frame PCAP 10 point touch screen equipped with IPS panel technology and a foam seal finish for seamless integration
| Length | 31 cm |
| Width | 31 cm |
| Height | 16 cm |
| Weight | 2.70 kgs |
