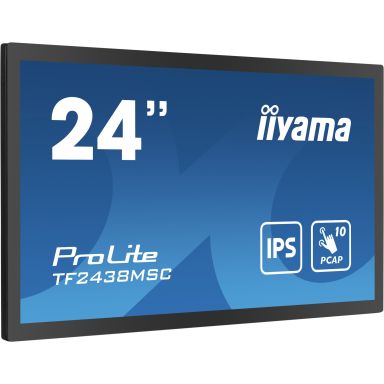

iiyama 23.8” 10pt Optical Bonded PCAP Open Frame Touch monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing
In Stock
|
£354.04
£424.85 (Inc. VAT)
get it next day (UK Mainland Orders)
iiyama 23.8” 10pt Optical Bonded PCAP Open Frame Touch monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing
Write Your Own Review
Display
Panel type
IPS
Display number of colours
16.7 million colours
Number of simultaneous touchpoints
10
Touchscreen
Yes
Active display area (W x H)
527 x 296.5 mm
Display technology
LED
Display diagonal
60.5 cm (23.8")
Display resolution
1920 x 1080 pixels
Display brightness
600 cd/m²
HD type
Full HD
Response time
5 ms
Contrast ratio (typical)
1000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Pixel pitch
0.275 x 0.275 mm
Display diagonal (metric)
60.5 cm
Native aspect ratio
16:9
Horizontal scan range
30 - 83 kHz
Touchscreen technology
Projected capacitive system
Surface hardness
7H
Native refresh rate
60 Hz
Glass thickness
3.6 mm
Ports & interfaces
USB port
Yes
Wi-Fi
No
DisplayPorts quantity
1
Ethernet LAN
No
HDMI ports quantity
1
DVI port
No
USB version
3.2 Gen 1 (3.1 Gen 1)
USB ports quantity
2
Audio
Number of built-in speakers
2
RMS rated power
4 W
Built-in speaker(s)
Yes
Design
Product design
Digital A-board
Placement supported
Indoor
Orientation
Horizontal/Vertical
Bezel width (top)
2.03 cm
Bezel width (side)
1.73 cm
Bezel width (bottom)
2.03 cm
Product colour
Black
Panel mounting interface
100 x 100 mm
Certification
CE, TÃœV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
VESA mounting
Yes
Performance
Purpose
Universal
International Protection (IP) code
IP1X
On Screen Display (OSD) languages
Simplified Chinese, German, English, French, Japanese, Polish, Russian
HDCP
Yes
Wi-Fi
No
Power
Power consumption (off)
0.3 W
Power consumption (typical)
22 W
Power consumption (standby)
1.5 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency class (SDR)
E
Computer system
Computer system
No
Built-in processor
No
Weight & dimensions
Width (with stand)
561.5 mm
Height (with stand)
337 mm
Depth (with stand)
47.5 mm
Weight (with stand)
6.5 kg
Display width
561.5 mm
Display depth
47.5 mm
Display height
337 mm
Display weight
6.5 kg
Packaging data
Package width
635 mm
Package depth
635 mm
Package height
409 mm
Package weight
8.1 kg
Quick start guide
Yes
Cables included
HDMI, Power, USB
Packaging content
Quick start guide
Yes
Cables included
HDMI, Power, USB
Certificates
Certification
CE, TÃœV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Technical details
VESA mounting
Yes
Power supply type
Internal
Panel type
IPS
Number of simultaneous touchpoints
10
Weight (with stand)
6.5 kg
Other features
Power supply type
Internal
Panel type
IPS
Number of simultaneous touchpoints
10
Wi-Fi
No
Width (with stand)
561.5 mm
Viewable size, vertical
29.6 cm
Viewable size, horizontal
52.7 cm
Height (with stand)
337 mm
Display technology
LED
Depth (with stand)
47.5 mm
Bezel width (top)
2.03 cm
Bezel width (side)
1.73 cm
Bezel width (bottom)
2.03 cm
Quick start guide
Yes
Weight (with stand)
6.5 kg
| Length | 63.5 cm |
| Width | 63.5 cm |
| Height | 40.9 cm |
| Weight | 8.10 kgs |
