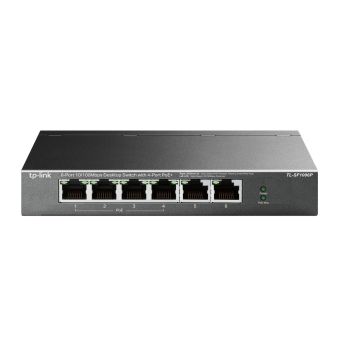

TP-Link TL-SF1006P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

TP-Link TL-SF1006P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black

In Stock In Stock
Brand: Tp-Link
SKU: TL-SF1006P
Condition: NEW
Delivery: Next Day*
Product Type:
$34.04
$40.85 (Inc. VAT)
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 100BASE-T
Basic switching RJ-45 Ethernet ports quantity
6
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Performance
Stackable
No
Auto-negotiation
Yes
Harmonized System (HS) code
85176990
Fanless
Yes
Technical details
Product colour
Black
Stackable
No
Housing material
Metal
Rack mounting
No
Sustainability compliance
Yes
Sustainability certificates
CE, Federal Communications Commission (FCC), RoHS
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Management features
Switch type
Unmanaged
Network
Cable types supported
Cat3, Cat4, Cat5, Cat5e
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 100BASE-T
Networking standards
IEEE 802.3af, IEEE 802.3at
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Half duplex
Yes
Data transmission
Jumbo frames
2000
MAC address table
2000 entries
Switching capacity
1.2 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Forwarding rate
0.8928 Mpps
Certificates
Certification
FCC, CE, RoHS
Design
Product colour
Black
Stackable
No
LED indicators
Yes
Housing material
Metal
Certification
FCC, CE, RoHS
Rack mounting
No
Indication
LED indicators
Yes
Power
Power consumption (max)
74 W
Power supply included
Yes
AC input voltage
220 V
AC input frequency
50 Hz
Input current
1.31 A
DC input voltage
53.5 V
Power source
DC/PoE
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
4
Total Power over Ethernet (PoE) budget
67 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
252.34 BTU/h
Weight & dimensions
Width
158 mm
Depth
101 mm
Height
25 mm
Packaging data
AC adapter included
Yes
Package type
Box
Package width
131 mm
Package depth
196 mm
Package height
121 mm
User guide
Yes
Package weight
870 g
Sustainability
Sustainability compliance
Yes
Sustainability certificates
CE, Federal Communications Commission (FCC), RoHS
Logistics data
Harmonized System (HS) code
85176990
Packaging content
AC adapter included
Yes
User guide
Yes
TP-Link TL-SF1006P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
