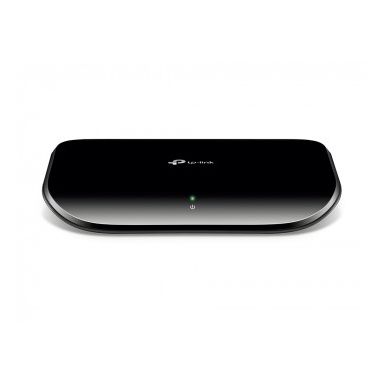

TP-LINK 5-Port Gigabit Desktop Network Switch
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
| Performance | |
| Stackable | No |
| Power | |
| Power connector | DC-in jack |
| Power consumption (max) | 2.41 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.6 A |
| DC input voltage | 9 V |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Rack mounting | No |
| Ethernet LAN (RJ-45) ports | 5 |
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Network | |
| Networking standards | IEEE 802.3-IEEE 802.3ab-IEEE 802.3u-IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Supported data transfer rates | 10/100/1000 Mbit/s |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Certificates | |
| Certification | FCC- CE- RoHs |
| Design | |
| Product colour | Black |
| Stackable | No |
| LED indicators | Yes |
| Certification | FCC- CE- RoHs |
| Rack mounting | No |
| Indication | |
| LED indicators | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 8.22 BTU/h |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 88 mm |
| Height | 25 mm |
| Packaging data | |
| Quick start guide | Yes |
| Package width | 145 mm |
| Package depth | 108 mm |
| Package height | 85 mm |
| Package weight | 240 g |
| Cables included | AC |
| Other features | |
| Ethernet LAN (RJ-45) ports | 5 |
| Dimensions (WxDxH) | 165 x 108 x 28 mm |
| Connectivity technology | Wired |
| Networking features | Gigabit Ethernet |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC |
