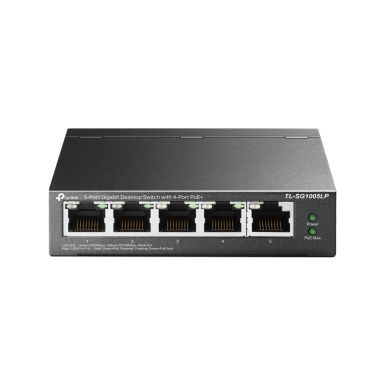

TP-Link TL-SG1005LP network switch Unmanaged Gigabit Power over Ethernet (PoE)
In Stock
|
$38.28
$45.94 (Inc. VAT)
Ports & interfaces
Copper ethernet cabling technology
10BASE-T- 100BASE-TX- 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
IGMP snooping
Yes
Cable types supported
Cat3- Cat4- Cat5- Cat5e- Cat6
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes
Copper ethernet cabling technology
10BASE-T- 100BASE-TX- 1000BASE-T
Networking standards
IEEE 802.1p- IEEE 802.3ab- IEEE 802.3af- IEEE 802.3at- IEEE 802.3i- IEEE 802.3u- IEEE 802.3x
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Performance
Auto-negotiation
Yes
Harmonized System (HS) code
85176990
Fanless
Yes
Technical details
Product colour
Black
Rack mounting
No
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Data transmission
Jumbo frames
16000
MAC address table
2000 entries
Switching capacity
10 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Forwarding rate
7.44 Mpps
Security
IGMP snooping
Yes
Certificates
Certification
FCC- CE- RoHS
Design
Wall mountable
Yes
Product colour
Black
LED indicators
Yes
Certification
FCC- CE- RoHS
Rack mounting
No
Indication
LED indicators
Yes
Power
Power consumption (max)
47.5 W
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity
4
Total Power over Ethernet (PoE) budget
40 W
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
161.98 BTU/h
Weight & dimensions
Width
99.8 mm
Depth
98 mm
Height
25 mm
Packaging data
User guide
Yes
Logistics data
Harmonized System (HS) code
85176990
Packaging content
User guide
Yes
TP-Link TL-SG1005LP network switch Unmanaged Gigabit Power over Ethernet (PoE)
