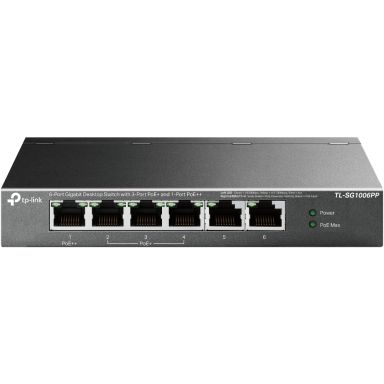

TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
In Stock
|
$62.26
$74.71 (Inc. VAT)
Ports & interfaces
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
6
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
IGMP snooping
Yes
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
MAC address auto-learning supported
Yes
MAC address auto-aging supported
Yes
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards
IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
Performance
Stackable
Yes
Auto-negotiation
Yes
Fanless
Yes
Technical details
Product colour
Grey
Stackable
Yes
Rack mounting
Yes
Management features
Switch type
Unmanaged
Quality of Service (QoS) support
Yes
Data transmission
MAC address table
4000 entries
Switching capacity
12 Gbit/s
Store-and-forward
Yes
Forwarding rate
8.928 Mpps
Security
IGMP snooping
Yes
Certificates
Certification
FCC, CE, RoHS
Design
Product colour
Grey
Stackable
Yes
LED indicators
Yes
Certification
FCC, CE, RoHS
Rack mounting
Yes
Indication
LED indicators
Yes
Power
Power consumption (max)
71.46 W
Power supply included
Yes
Power consumption (typical)
4.75 W
Input current
1.31 A
DC input voltage
53.5 V
Power source
DC/PoE
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget
64 W
Power over Ethernet (PoE) ports quantity
4
Power over Ethernet (PoE)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
16.2 BTU/h
Weight & dimensions
Width
158 mm
Depth
101 mm
Height
25 mm
Packaging data
Package type
Box
Quick start guide
Yes
Other features
Ethernet LAN data rates
10,100,1000 Mbit/s
Packaging content
Quick start guide
Yes
TP-Link 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++
