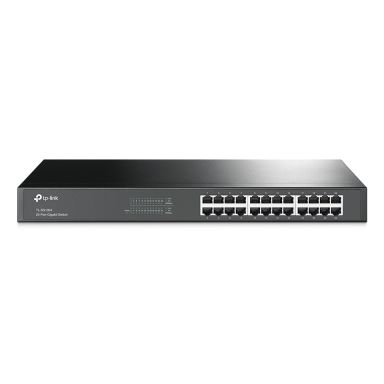

TP-LINK 24-Port Gigabit Rackmount Network Switch
In Stock
|
$82.76
$99.31 (Inc. VAT)
Ports & interfaces
Copper ethernet cabling technology
10BASE-T-100BASE-TX-1000BASE-T
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
IGMP snooping
Yes
Copper ethernet cabling technology
10BASE-T-100BASE-TX-1000BASE-T
Networking standards
IEEE 802.1Q-IEEE 802.1p-IEEE 802.3-IEEE 802.3ab-IEEE 802.3u
Full duplex
Yes
Rate limiting
Yes
Port mirroring
Yes
Number of VLANs
32
Link aggregation
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
10G support
No
Virtual LAN features
Number of VLANs
32
Data transmission
Number of VLANs
32
Jumbo frames
10000
Throughput
35.7 Mpps
Packet buffer memory
4.1 MB
MAC address table
8000 entries
Switching capacity
48 Gbit/s
Store-and-forward
Yes
Number of queues
4
Jumbo frames support
Yes
Performance
Packet buffer memory
4.1 MB
Technical details
Product colour
Black
Rack mounting
Yes
Management features
Switch type
Managed
Quality of Service (QoS) support
Yes
Switch layer
L2
Security
IGMP snooping
Yes
Certificates
Certification
FCC- CE- RoHS
Memory
Packet buffer memory
4.1 MB
Design
Product colour
Black
LED indicators
Yes
Certification
FCC- CE- RoHS
Rack mounting
Yes
Indication
LED indicators
Yes
Power
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (typical)
14.19 W
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
48.39 BTU/h
Weight & dimensions
Width
294 mm
Depth
180 mm
Height
44 mm
Packaging data
Package type
Box
Rack mount kit
Yes
User guide
Yes
Cables included
AC
Packaging content
Rack mount kit
Yes
User guide
Yes
Cables included
AC
TP-LINK 24-Port Gigabit Rackmount Network Switch
