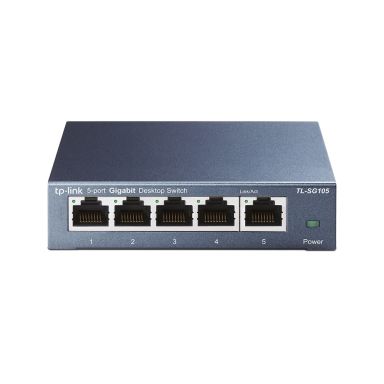

TP-LINK 5-Port 10/100/1000Mbps Desktop Network Switch
0 Reviews
| Add your review
In Stock
|
£14.44
£17.33 (Inc. VAT)
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T-100BASE-TX-1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
| Network | |
| IGMP snooping | Yes |
| Cable types supported | Cat3-Cat4-Cat5-Cat5e |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Copper ethernet cabling technology | 10BASE-T-100BASE-TX-1000BASE-T |
| Networking standards | IEEE 802.1p-IEEE 802.3-IEEE 802.3ab-IEEE 802.3u-IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Performance | |
| Packet buffer memory | 1 MB |
| Auto-negotiation | Yes |
| Power | |
| Power connector | DC-in jack |
| Power consumption (max) | 2.3 W |
| Power supply included | Yes |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Input current | 0.6 A |
| Technical details | |
| Product colour | Black |
| Housing material | Steel |
| Rack mounting | No |
| Data transmission | |
| Jumbo frames | 16000 |
| Packet buffer memory | 1 MB |
| MAC address table | 2048 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 7.4 Mpps |
| Security | |
| IGMP snooping | Yes |
| Multicast features | |
| Multicast support | Yes |
| Certificates | |
| Certification | CE- FCC- RoHS |
| Memory | |
| Packet buffer memory | 1 MB |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Steel |
| Certification | CE- FCC- RoHS |
| Rack mounting | No |
| Indication | |
| LED indicators | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 7.83 BTU/h |
| Weight & dimensions | |
| Width | 100 mm |
| Depth | 98 mm |
| Height | 25 mm |
| Packaging data | |
| Package type | Box |
| User guide | Yes |
| Cables included | AC |
| Packaging content | |
| User guide | Yes |
| Cables included | AC |
