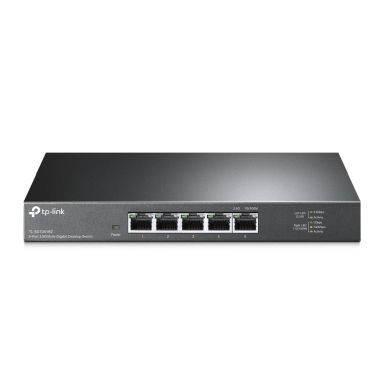

TP-LINK 5-Port 2.5G Desktop Switch
In Stock
|
Call For Price
(0808 189 1246)
Technical details
Product colour
Black
Management features
Switch type
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Network
Networking standards
IEEE 802.3-IEEE 802.3ab-IEEE 802.3p-IEEE 802.3u-IEEE 802.3x-IEEE 802.3z
Ethernet LAN data rates
10-100-1000 Mbit/s
10G support
No
Data transmission
MAC address table
16000 entries
Switching capacity
25 Gbit/s
Store-and-forward
Yes
Forwarding rate
18.6 Mpps
Certificates
Certification
CE- FCC -RoHS
Design
Product colour
Black
LED indicators
Yes
Certification
CE- FCC -RoHS
Indication
LED indicators
Yes
Power
Power consumption (max)
12.11 W
Power supply included
Yes
Input current
1 A
DC input voltage
12 V
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
41.32 BTU/h
Weight & dimensions
Width
209 mm
Depth
126 mm
Height
26 mm
Packaging data
Quick start guide
Yes
Cables included
LAN (RJ-45)
Other features
Ethernet LAN data rates
10-100-1000 Mbit/s
Packaging content
Quick start guide
Yes
Cables included
LAN (RJ-45)
