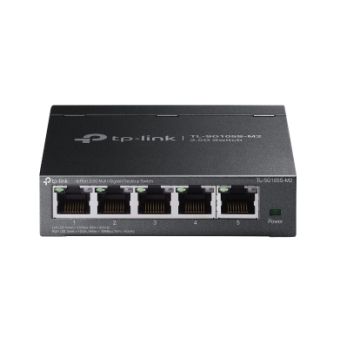

TP-Link TL-SG105S-M2 network switch Managed 2.5G Ethernet (100/1000/2500) Black
In Stock
|
£46.49
£55.79 (Inc. VAT)
get it next day (UK Mainland Orders)
TP-Link TL-SG105S-M2 network switch Managed 2.5G Ethernet (100/1000/2500) Black
Write Your Own Review
Management features
Switch type
Managed
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Network
Networking standards
IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
Flow control support
Yes
Auto MDI/MDI-X
Yes
10G support
No
Auto-negotiation
Yes
IGMP snooping
Yes
Data transmission
MAC address table
4000 entries
Switching capacity
25 Gbit/s
Jumbo frames support
Yes
Forwarding rate
18.6 Mpps
Security
IGMP snooping
Yes
Design
Wall mountable
Yes
Product colour
Black
LED indicators
Link, Power
Housing material
Metal
Performance
Fanless
Yes
Auto-negotiation
Yes
Power
Power consumption (max)
5.81 W
Power supply included
Yes
Input current
0.6 A
DC input voltage
9 V
Power source
DC
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 90%
Heat dissipation
19.754 BTU/h
Weight & dimensions
Width
99.8 mm
Depth
98 mm
Height
25 mm
Packaging content
Quick start guide
Yes
Technical details
Product colour
Black
Housing material
Metal
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Certificates
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Indication
LED indicators
Link, Power
Packaging data
Quick start guide
Yes
| Length | 9.8 cm |
| Width | 9.98 cm |
| Height | 2.5 cm |
| Weight | 1.00 kgs |
